Removing control unit for alarm system
NOTE:
- Only remove the control unit with the battery disconnected. See WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
- Code numbers from IPAS are required.
- In order to prevent possible complications when teaching the transponder and radio codes, use the spare key as well.
- The control unit for the alarm system can only be taught for one vehicle; a transfer to a different vehicle is not possible.
ALARM SYSTEM CONTROL UNIT REMOVAL INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Remove the left front seat | ||
| Refer to REMOVING AND INSTALLING FRONT SEAT . | ||

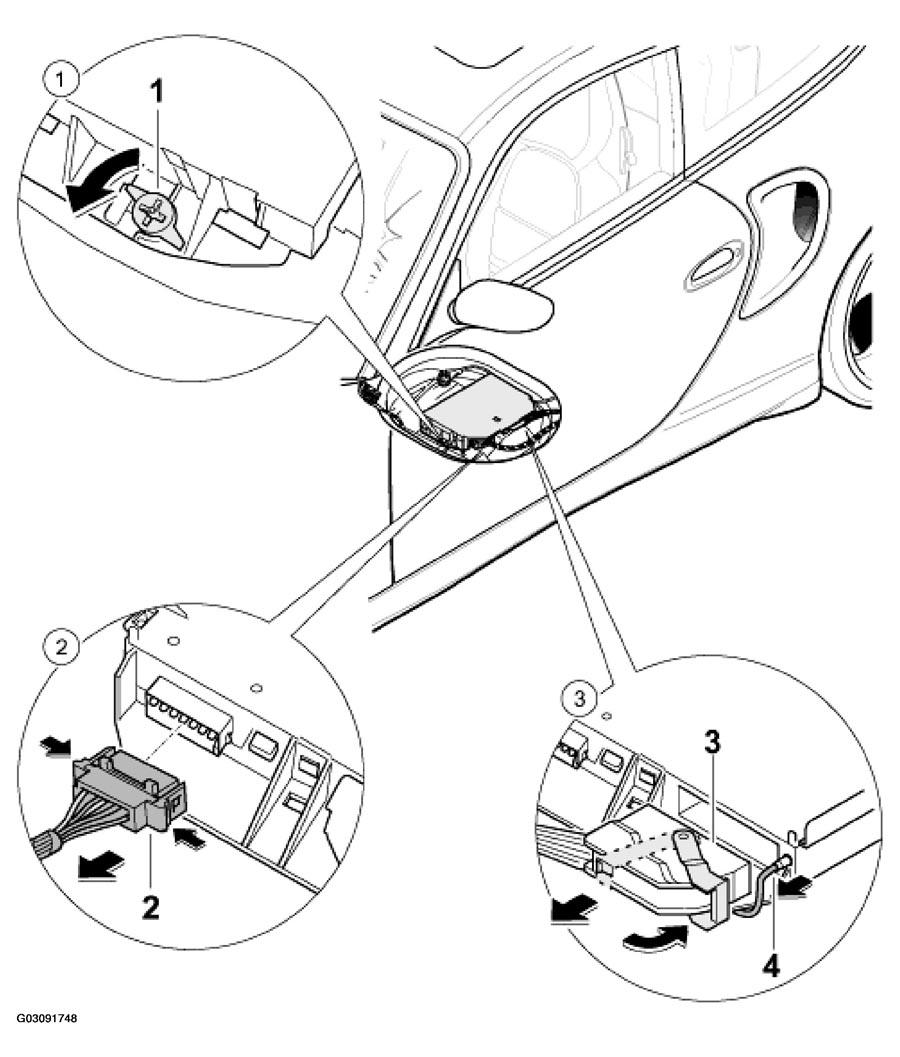

| 1 | Opening lock | Open the lock -1-direction of the arrow- |
| 2 | Disconnecting the connectors | Press connectors -2- |
| 3 | Disconnecting the connectors | Press the locking -arrow-3-4- |
