Installing control unit for alarm system
NOTE:
- Only install the control unit with the battery disconnected. See WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .

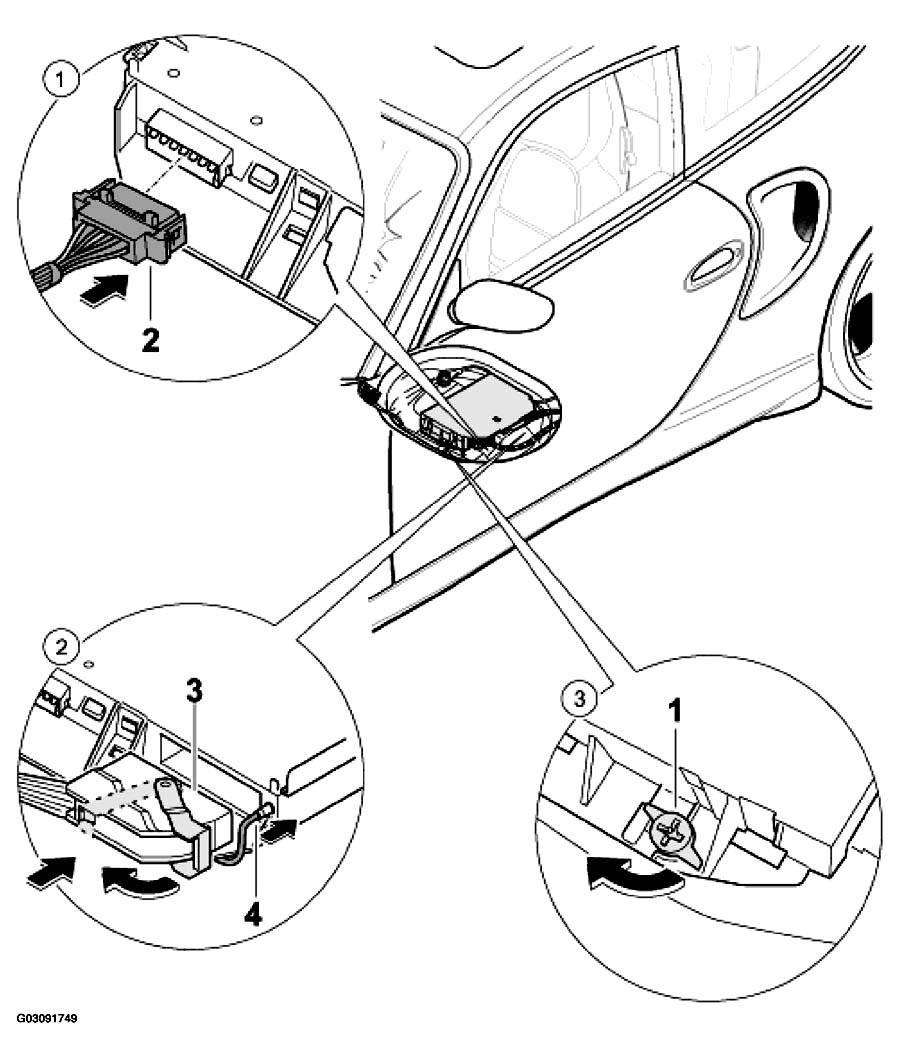

ALARM SYSTEM CONTROL UNIT INSTALLATION INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Inserting the connectors | Insert the connector -2- |
| 2 | Inserting the connectors | Insert connector -4-3- |
| 3 | Screwing control unit tight | Engage the control unit in the opening on the vehicle floor and close the lock -1-direction of the arrow- |
Installing left front seat
Refer to REMOVING AND INSTALLING FRONT SEAT .
