Removing bulb for engine compartment light

  1. Press -engine compartment light-  carefully out of the fan cover using a screwdriver.

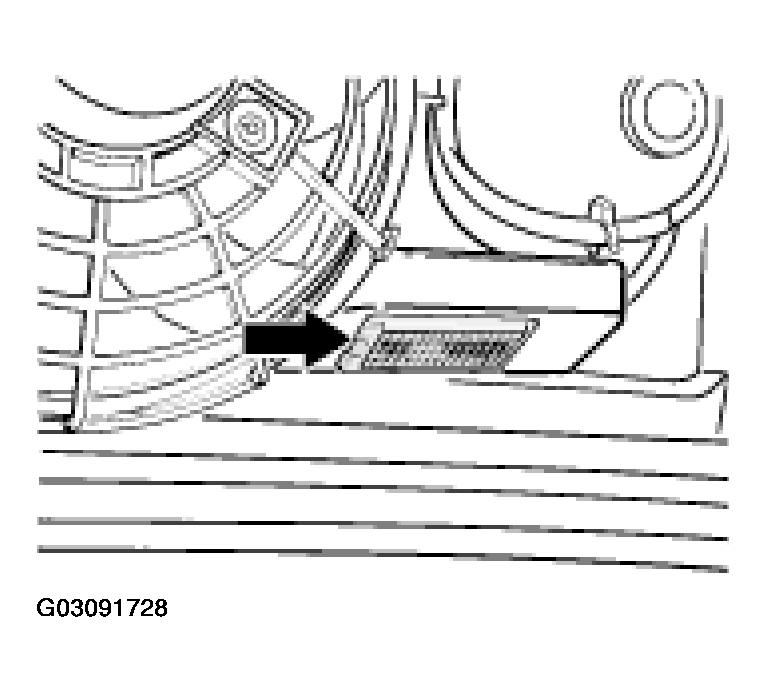

    Fig 1: Removing Bulb For Engine Compartment Light
    G03091728Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove defective bulb from between the contact springs.
