Removing key from the bottom part

  1. In order to remove the key from the bottom part, the compression spring in the sliding latch is compressed and held with a small screwdriver.

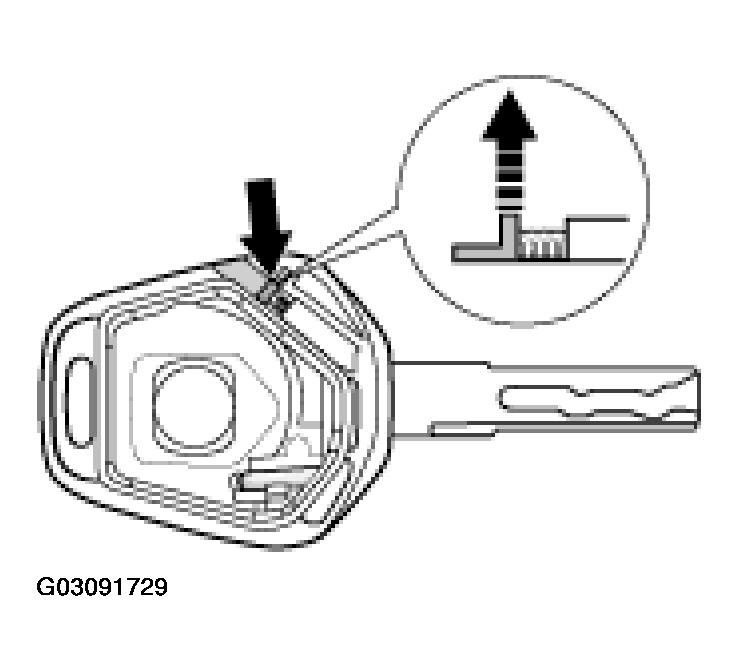

    Fig 1: Removing Key From Bottom Part
    G03091729Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Lift out the cap and relieve the compression spring.
  3. Push the sliding latch back and pull the key out of the bottom part.
