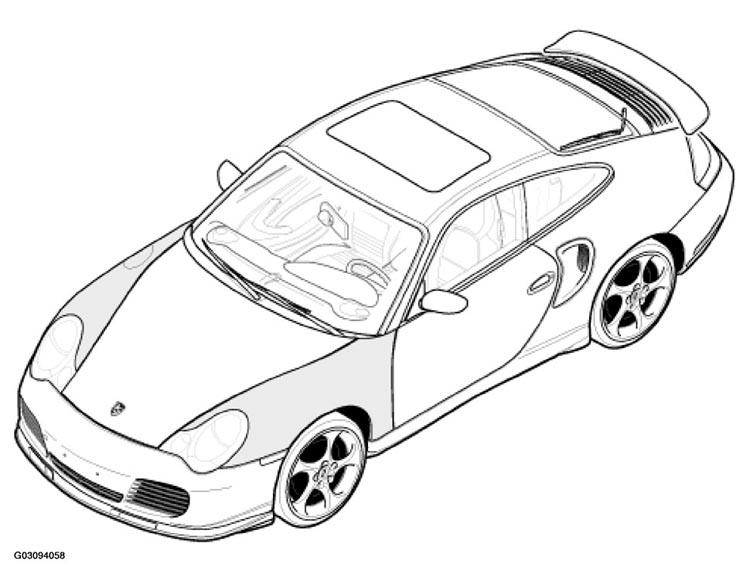

Removing and installing the wing
NOTE:
- Before removing the wing, the following parts must be removed:
- Refer to REMOVING AND INSTALLING THE WHEEL - TURBO AND GT2 .
- Refer to REMOVING AND INSTALLING WHEEL HOUSING LINERS, FRONT .
- Refer to REMOVING AND INSTALLING FILLER FLAP .
- Refer to REMOVING AND INSTALLING THE MAIN HEADLIGHTS .
- For the right wing, remove carbon canister.
- For the left wing, refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM .

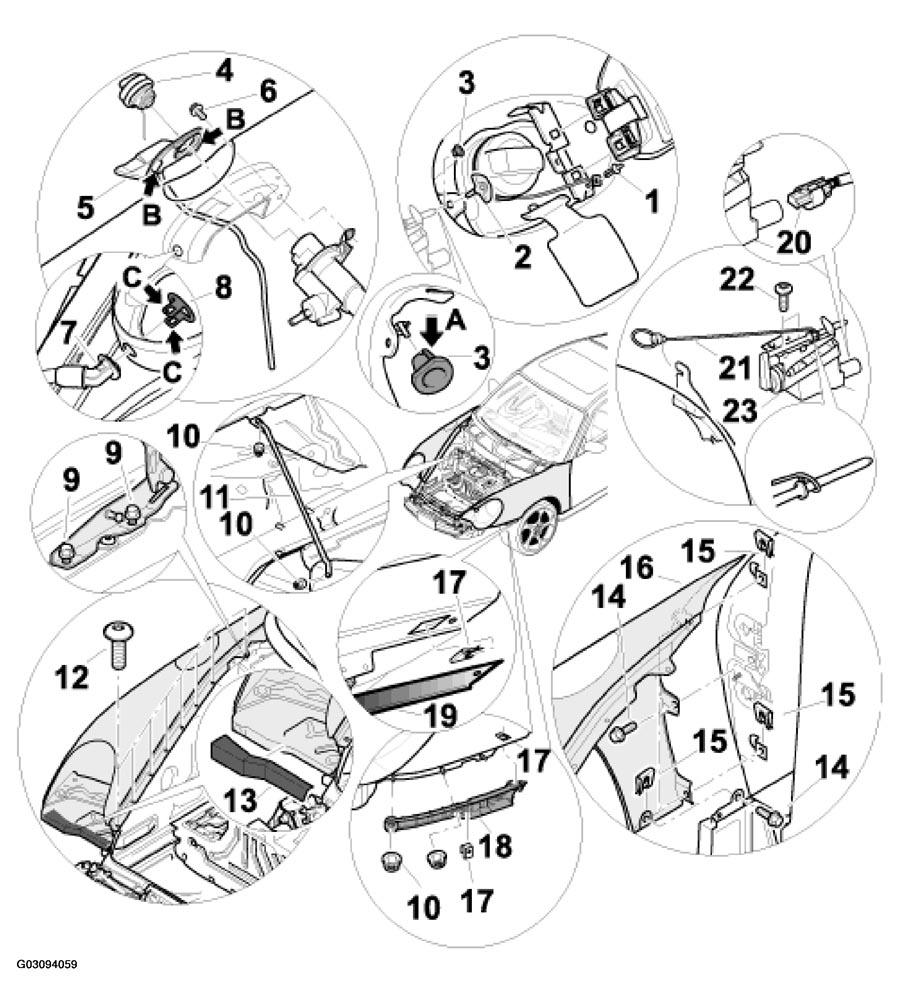

REMOVING/INSTALLING WINGS (FENDER)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Plastic body-bound rivet 5.0 x 11.5 | 1 | Press out pin in the centre of the rivet head. | |
| 2 | Rubber sleeve | 1 | Pull off. | Press in. |
| 3 | Guide ring | 1 | Press lug -A- | |
| 4 | Tank lock | 1 | ||
| 5 | Sleeve | 1 | Press lugs of the sleeve -B- | |
| 6 | Collar nut M6 x 20 | 1 | Tightening torque: -10 Nm (7.5 ftlb.)- | |
| 7 | Angle piece | 1 | ||
| 8 | Plastic clip | 1 | Press apart lugs -C- | |
| 9 | Collar screw M6 x 20 | 2 | Undo two turns. | |
| 10 | Collar nut M6 | 2 | ||
| 11 | Wing brace | 1 | ||
| 12 | Torx sheetmetal screw T 20 | |||
| 13 | Protective film | 1 | Replace | |
| 14 | Sheetmetal screw St 6.3 x 12 | 4 | ||
| 15 | Sheetmetal nut | 11 | ||
| 16 | Wing | 1 | Pull out downwards at the A-pillar and remove to the front. | Insert the wing under the lid hinge at the front, fit the sheetmetal screws. Adjust contours and joining dimensions -14, 12- (see: DIAGRAM - BODY GAP DIMENSIONS ) -14, 12- to the door and covers, tighten sheetmetal screws -14, 12- |
| 17 | Sheetmetal nut -17- | 2 | ||
| 18 | Retaining strip | 1 | Undo the collar nuts-10- | Fix retaining strip on the wing upward to the stop and fasten with the collar nuts -10-10 Nm (7.5 ftlb.)- |
| 19 | Transparent protective film | 1 | Pull off. | Replace. |
| 20 | Electrical plug connection -20- | 1 | Press lug and separate. | |
| 21 | Emergency cable | 1 | ||
| 22 | Sheetmetal screw B 4.2 x 18 | 2 | ||
| 23 | Servo motor | 1 |
