Removing and installing filler flap

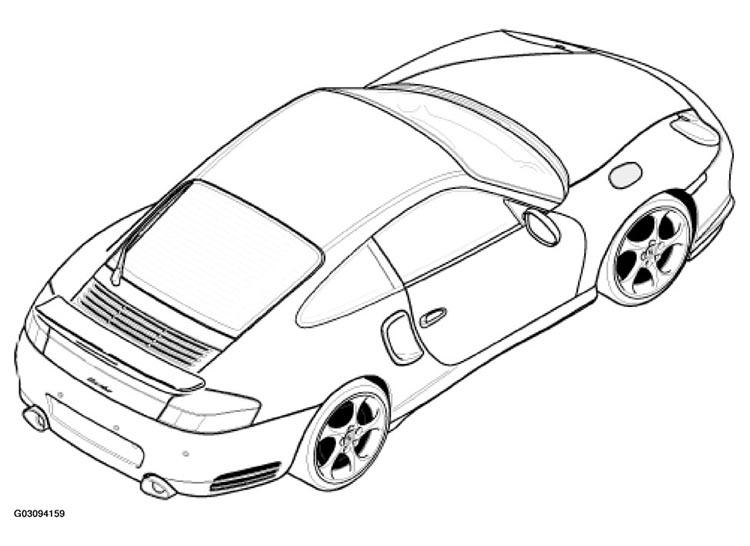

Fig 1: Identifying Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

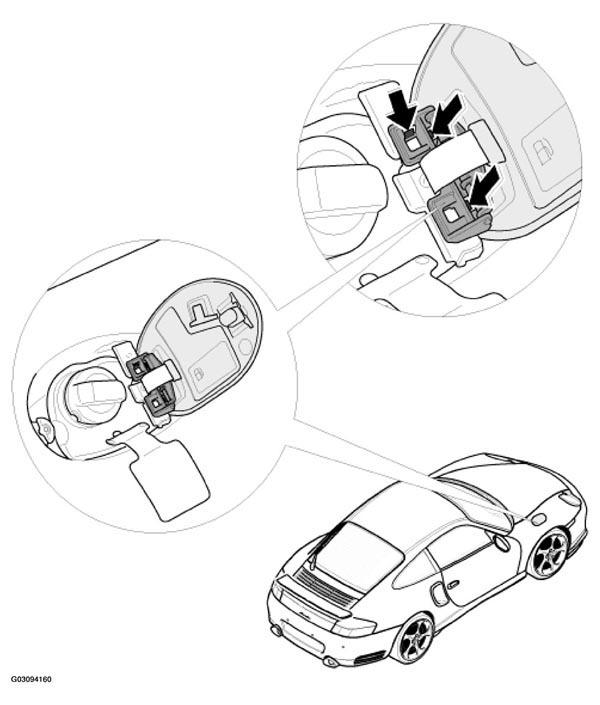

Fig 2: Removing And Installing Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVING AND INSTALLING FILLER FLAP

No.	Designation	Qty.	Removal	Installation
1	Filler flap	1	Insert a narrow screwdriver from above in front of the clip -arrow-	Position filler flap on the wing cut-out and press in until the fastening lugs engage.
2	Plastic hinge	1	Insert the disassembly tool at the locking lugs on the left and right and lift via the locking lugs, push the plastic hinge against the disassembly tool and detach from the filler flap.	Position the plastic hinge at the filler flap and push on until it engages perceptibly.
