Removing cover for the front backrest frame

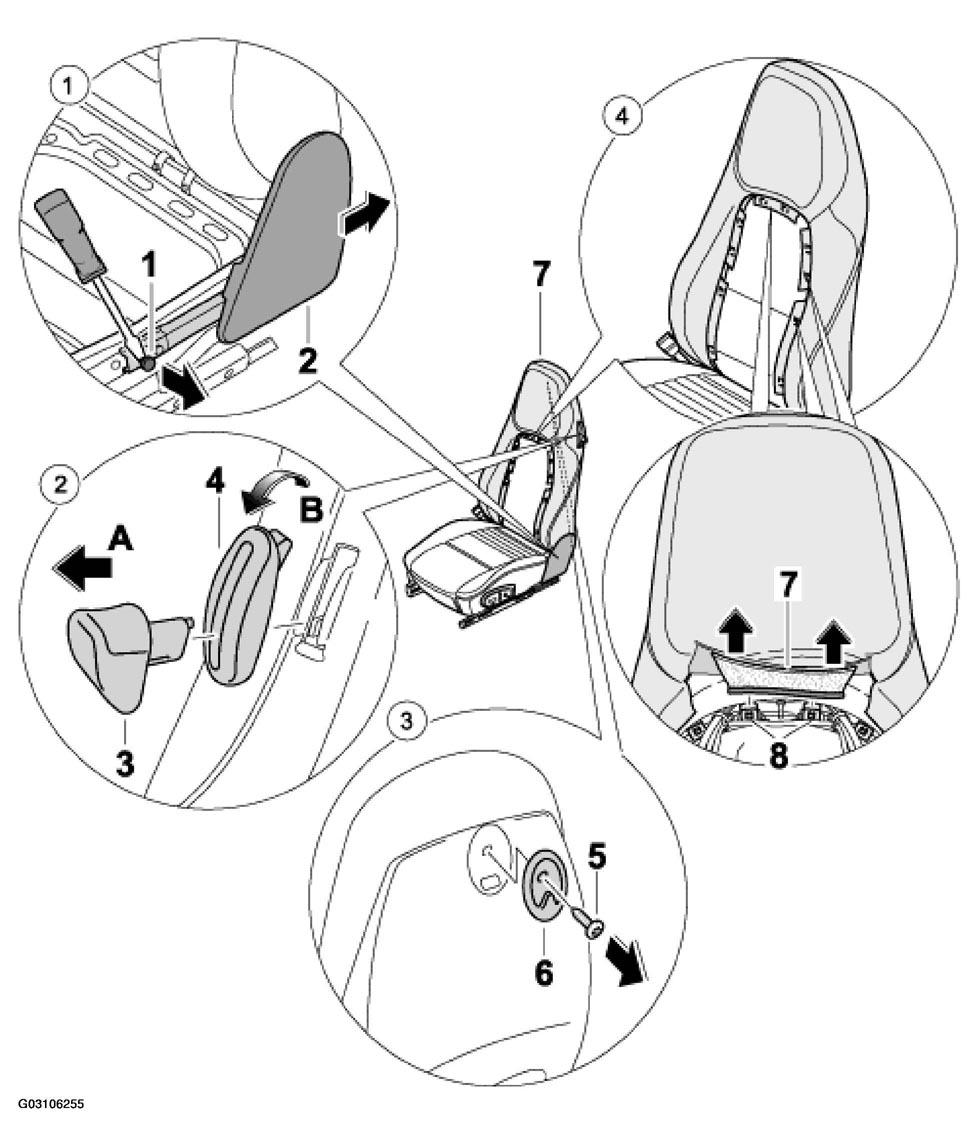

REMOVING COVER FOR FRONT BACKREST FRAME (1 OF 2)
| No. | Procedure | Instructions |
|---|---|---|
| Removing the backrest centre strip | See REMOVING THE BACKREST CENTRE STRIP . | |
| 1 | Removing backrest cover at the side | Press out body-bound rivet -1-2- . See Fig 1 . |
| 2 | Removing backrest release lever | Insert a screwdriver into the rear of the backrest lever -3-direction of arrow A-4-arrow B- . See Fig 1 . |
| 3 | Removing clothes hook | Unscrew fastening screw -5-6-7- . See Fig 1 . |
| 4 | Pressing out the covering strips of the backrest cover from the backrest shell. | Press covering bead -7-8- . See Fig 1 . |

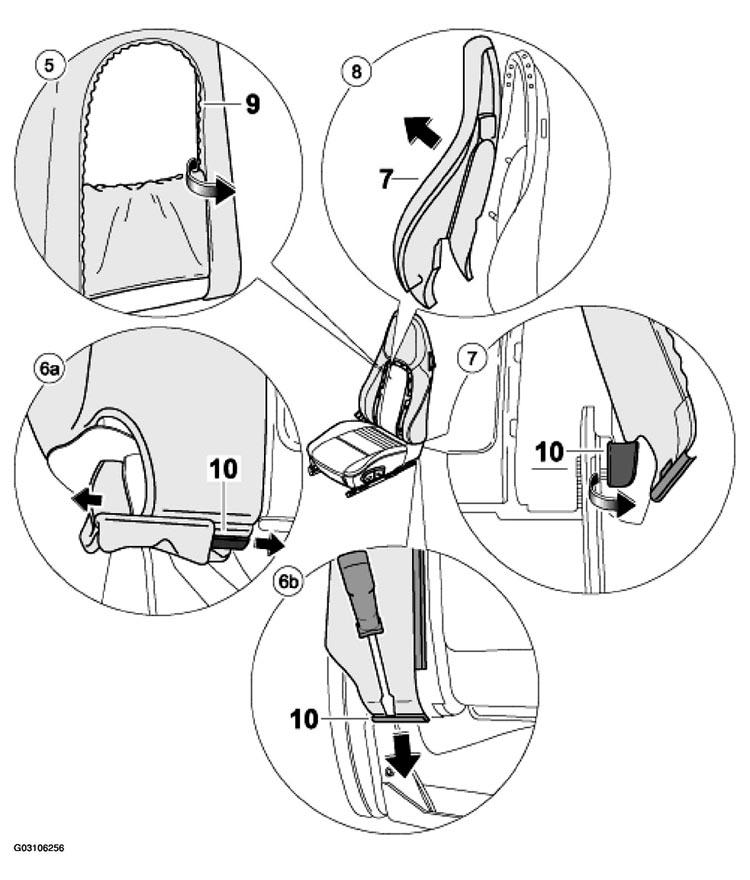

REMOVING PROCEDURE FOR COVER FOR FRONT BACKREST FRAME (2 OF 2)
| No. | Procedure | Instructions |
|---|---|---|
| 5 | Detaching the backrest covering at rear | Pull the backrest covering at the rear -9- . See Fig 2 . |
| 6a | Opening side bolster closure, old status | The side bolsters of the backrest coverings are joined together at the bottom of the backrest shell. The closure -10- . See Fig 2 . |
| 6b | Opening side bolster closure, new status | The side bolsters of the backrest coverings are joined together at the bottom of the backrest shell. To open the covering, press out the closure -10- . See Fig 2 . |
| 7 | Opening fold of the side bolsters | Pull the fold of the side bolsters -11- . See Fig 2 . |
| 8 | Removing backrest covering | Lift the backrest covering up and off the backrest shell. Separate the foam part from the backrest frame if necessary. |
