Removing the backrest centre strip

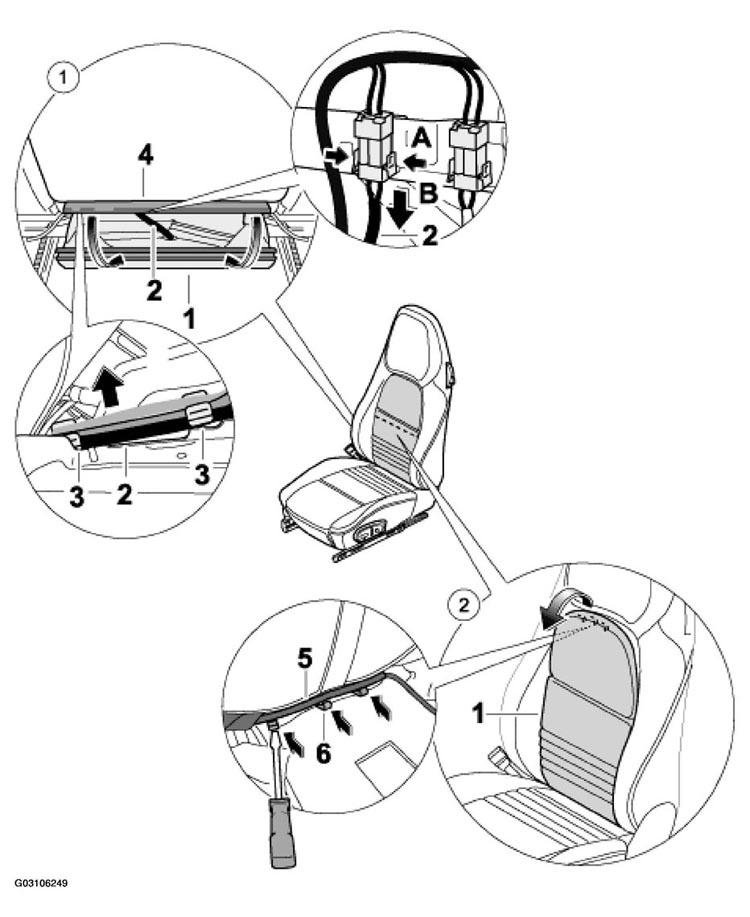

Fig 1: Removing Backrest Centre Strip
G03106249Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING PROCEDURE FOR BACKREST CENTRE STRIP

No. Procedure Instructions
1 Detaching covering strip from the backrest shell and disconnecting electrical plug connection Press locking tabs of the backrest seat heating -A-B-2-3-1-4-  . See Fig 1 .
2 Unclipping the backrest centre strip Insert your hand into the top of the backrest covering and lift outward -arrow-6-5-  . See Fig 1 .
