Removing covering for backrest centre strip

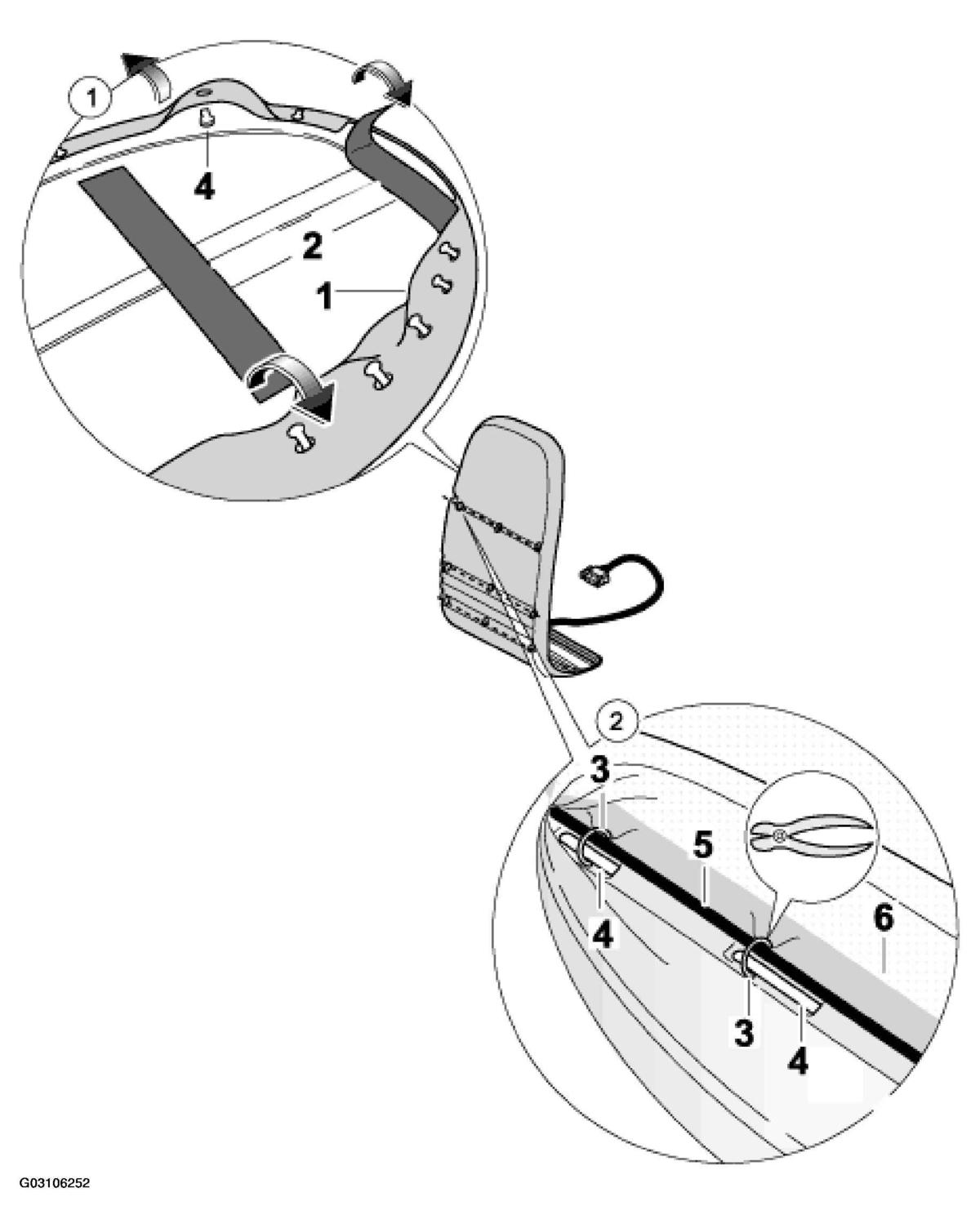

Fig 1: Removing Covering For Backrest Centre Strip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVING PROCEDURE FOR COVERING FOR BACKREST CENTRE STRIP

No.	Procedure	Instructions
	Removing backrest centre strip	See REMOVING THE BACKREST CENTRE STRIP .
1	Pulling off fabric tape strips	Pull of the felt strips -2-4-1-4- . See Fig 1 .
2	Cutting through the cushion clips	Cut through the cushion clips -3-5-4-6- . See Fig 1 .
