Removing And Installing Bulb For Parking Light: Removal

  1. Remove and install main headlight (Refer to REMOVING AND INSTALLING HEADLIGHTS  ).
  2. Open rear cover and pull the parking light bulb socket (arrow) out of the headlight reflector (do not pull on the wires).

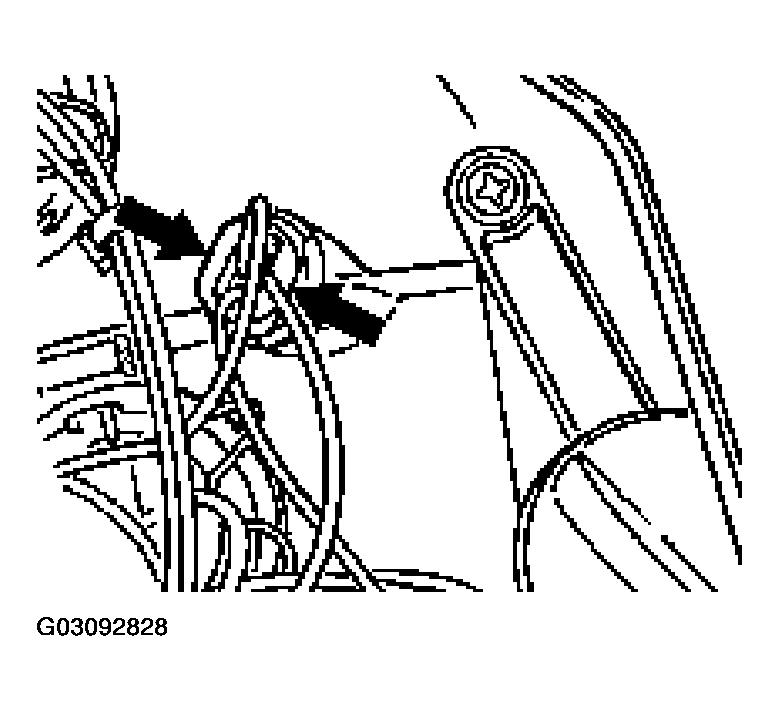

    Fig 1: Pulling Parking Light Bulb Socket Out Of Headlight Reflector
    G03092828Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove defective bulb from the parking light bulb socket.
