Removing And Installing Headlights

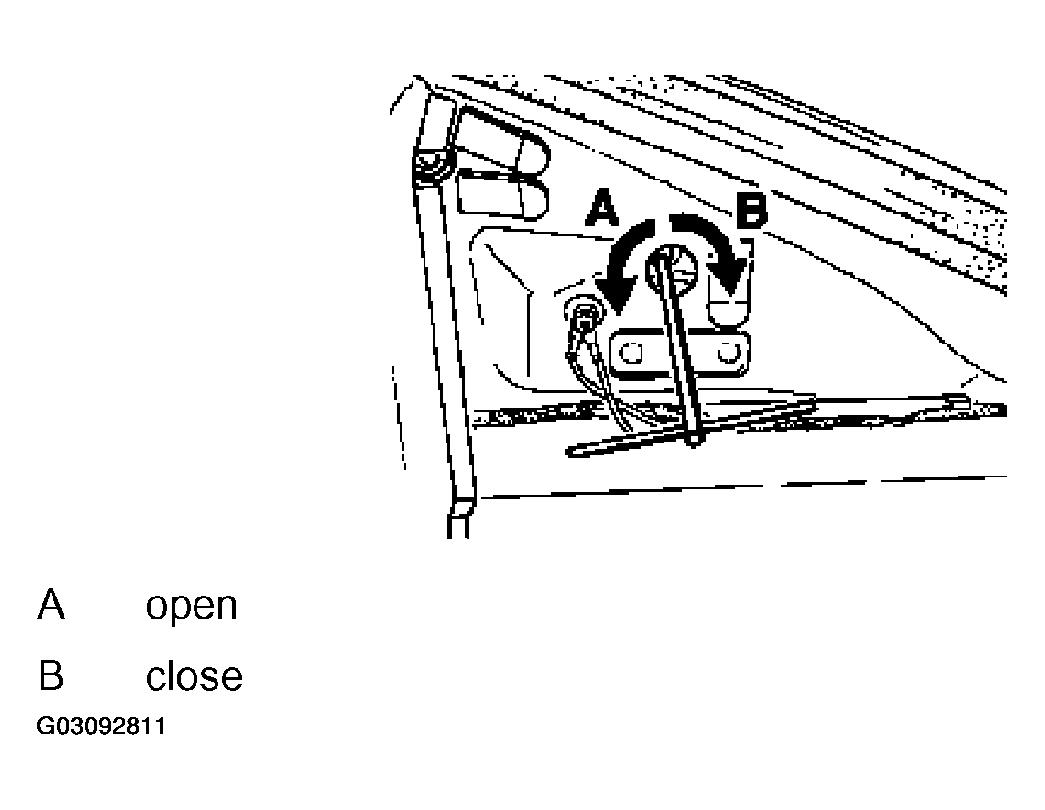

Fig 1: Manually Opening Or Closing Headlights
G03092811Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. open
  2. close
  1. The tool kit contains a wrench for opening and closing the headlights.
  2. When installing, press headlights firmly into the wing.
  3. Insert plugs after installation.
NOTE:
  • Headlights must not be covered with a front apron or foil when switched on.
