Clutches "K1" & "K2": Disassembly

  1. Install Assembler (9315) on diaphragm spring and tighten until snap ring can be removed. Remove diaphragm and springs.
  2. The number of springs for replacement clutch pistons may vary. If new springs are required, the correct number of springs must be installed. See Fig 1 and Figure.

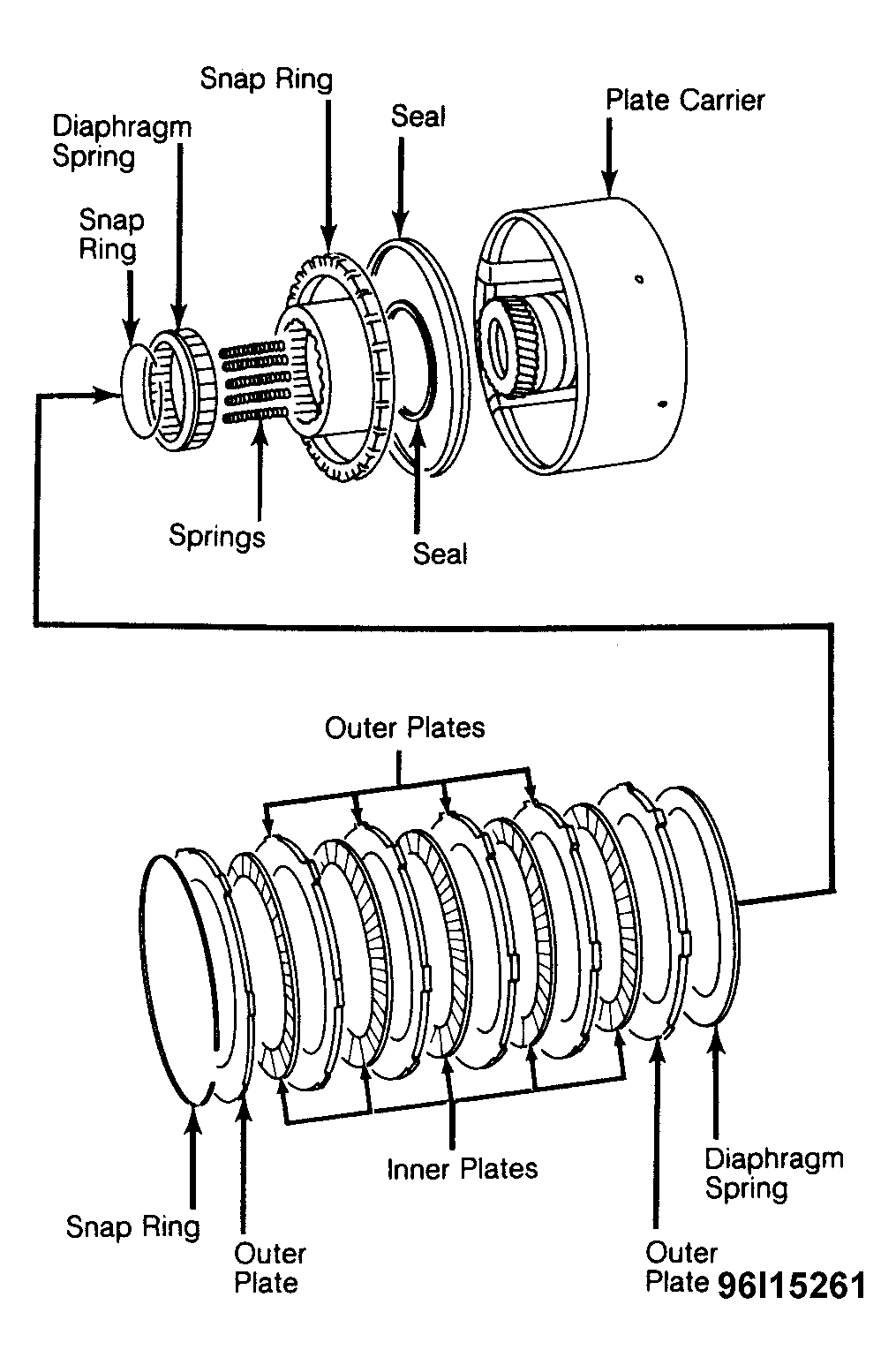

Fig 1: Exploded View of "K1" Clutch
G96I15261
