Intake Camshaft Removal

WARNING: This page is about a different variant/trim than selected.

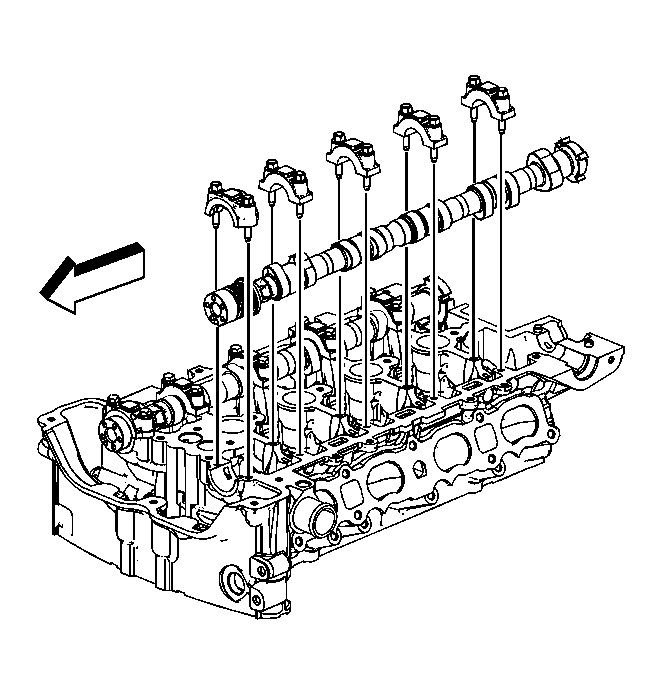

    Fig 1: View Of Intake Camshaft & Caps
    GM1825035Courtesy of GENERAL MOTORS CORP.
    NOTE: Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.
  1. Mark camshaft caps to ensure they are installed in the same position.
  2. Remove the intake camshaft cap bolts.
  3. Remove the camshaft caps.
  4. Remove the intake camshaft.
    5. Fig 2: View Of Intake Camshaft Roller Finger Followers
    GM1825036Courtesy of GENERAL MOTORS CORP.
    NOTE: Keep all of the roller finger followers and hydraulic lash adjusters in order so that they can be reinstalled in their respective locations.
  5. Remove the intake camshaft roller finger followers.
    6. Fig 3: View Of Hydraulic Lash Adjusters
    GM1825038Courtesy of GENERAL MOTORS CORP.
  6. Remove the hydraulic lash adjusters.
