Intake Manifold Removal

WARNING: This page is about a different variant/trim than selected.

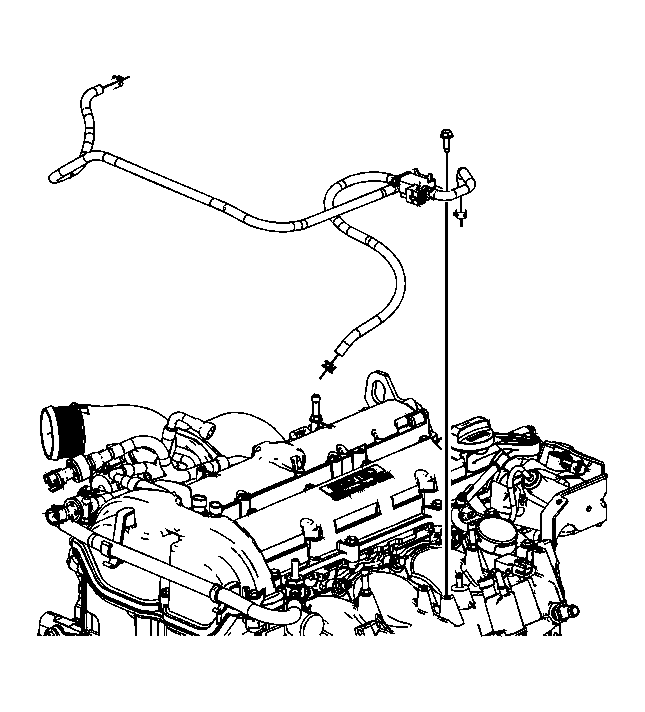

    Fig 1: View Of Bypass Valve Solenoid Hoses & Bolts
    GM1769657Courtesy of GENERAL MOTORS CORP.
    CAUTION: Never attempt to remove the intake manifold from a hot engine, allow the engine to cool to ambient temperature. The intake manifold can be damaged if it is removed when the engine is hot.
  1. Disconnect the bypass valve solenoid hoses.
  2. Remove the bypass valve solenoid bolts.
  3. Remove the bypass valve solenoid with hoses.
    4. Fig 2: View Of High Pressure Fuel Pump Cover
    GM1769666Courtesy of GENERAL MOTORS CORP.
  4. Remove the high pressure fuel pump cover bolts.
  5. Remove the high pressure fuel pump cover.
  6. Remove the high pressure fuel pump noise insulator.
    7. Fig 3: Identifying Fuel Feed Line & Bolts
    GM1769663Courtesy of GENERAL MOTORS CORP.
    WARNING: Fuel that flows out at high pressure can cause serious injury to the skin and eyes. ALWAYS depressurize the fuel system before removing components that are under high fuel pressure.
  7. Loosen and disconnect the fuel feed line tube nut.
  8. Remove the fuel feed line bolts.
  9. Remove the fuel feed line.
  10. Inspect the fuel feed line nut for damaged threads.
  11. Inspect the fuel feed line sealing bail for damage or debris.
  12. Replace the fuel feed line if any damage is found.
    13. Fig 4: View Of Throttle Body & Bolts
    GM1769706Courtesy of GENERAL MOTORS CORP.
  13. Remove the throttle body bolts.
  14. Remove the throttle body.
    15. Fig 5: View Of Vacuum Pump
    GM1846062Courtesy of GENERAL MOTORS CORP.
  15. Remove the vacuum pump bolts.
  16. Remove the vacuum pump.

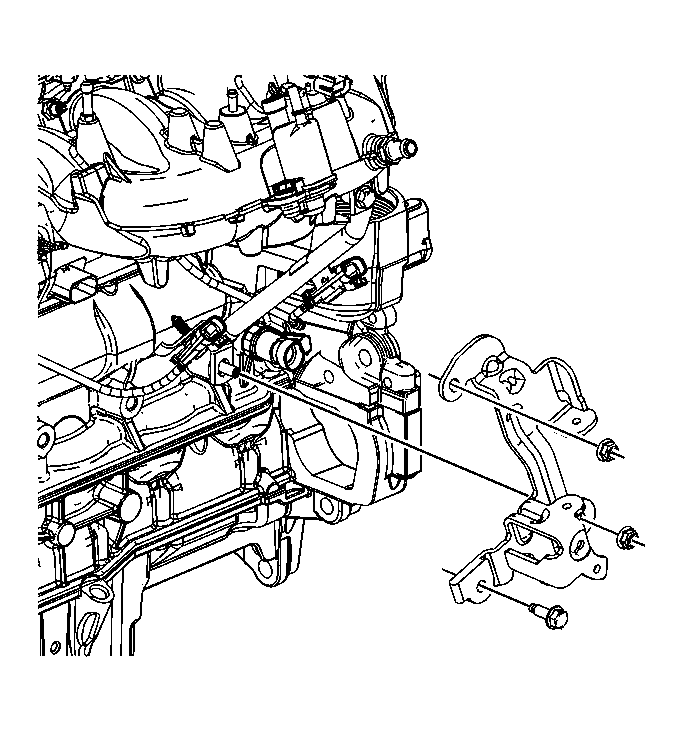

    17. Fig 6: View Of Vacuum Pump Bracket, Bolt & Nuts
    GM1769711Courtesy of GENERAL MOTORS CORP.
  17. Remove the vacuum pump bracket bolt and nuts.
  18. Remove the vacuum pump bracket.
    19. Fig 7: Identifying Intake Manifold Brace
    GM1769715Courtesy of GENERAL MOTORS CORP.
  19. Disconnect the rear knock sensor from the intake manifold brace.
  20. Remove the intake manifold brace bolt.
  21. Remove the intake manifold brace.
    22. Fig 8: View Of Intake Manifold
    GM1769718Courtesy of GENERAL MOTORS CORP.
  22. Remove the intake manifold bolts and nuts.
  23. Remove the intake manifold.
  24. Remove the intake manifold gasket.
