Timing Chain Tensioner Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the chain tensioner slipper.
  2. Remove the No. 1 chain vibration damper.
  3. Remove the chain sub-assembly.
  4. Remove the No. 2 chain vibration damper.
  5. Remove the crankshaft timing sprocket.
  6. Remove the No. 2 chain sub-assembly.
    7. Fig 1: Identifying No. 1 Crankshaft Position Sensor Plate
    GM2017057Courtesy of GENERAL MOTORS CORP.
  7. Remove the No. 1 crankshaft position sensor plate.

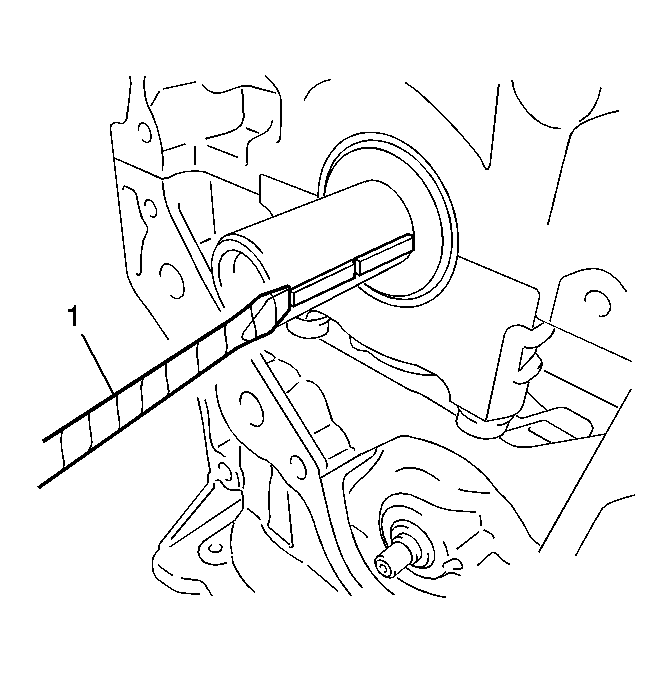

    8. Fig 2: Identifying Crankshaft Timing Gear Keys
    GM2017059Courtesy of GENERAL MOTORS CORP.
    NOTE: Tape the screwdriver tip before use.
  8. Using a screwdriver, remove the 2 crankshaft timing gear keys.
  9. Remove the camshaft timing gear assembly.
  10. Check the lock of the camshaft timing gear.
    11. NOTE: Before removing the camshaft timing gear assembly, make sure that the lock pin has been released.
  11. Release the lock pin. Refer to Camshaft Position Actuator Locking Pin Adjustment .
