Camshaft Position Actuator Locking Pin Adjustment

WARNING: This page is about a different variant/trim than selected.

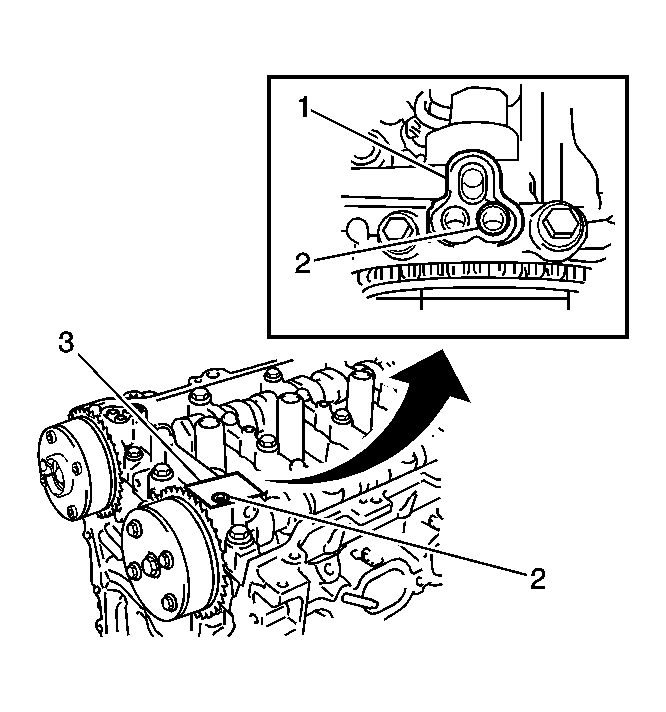

    Fig 1: Identifying Camshaft Timing Gear Assembly
    GM2016721Courtesy of GENERAL MOTORS CORP.
    NOTE: Be sure to cover the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.
  1. After cleaning and degreasing the VVT oil hole on the intake side of the No. 1 camshaft bearing cap, completely seal the oil hole with adhesive tape or equivalent as shown in the illustration to prevent air from leaking.
  2. Prick a hole in the tape covering the oil hole as shown in the illustration. (Procedure A)

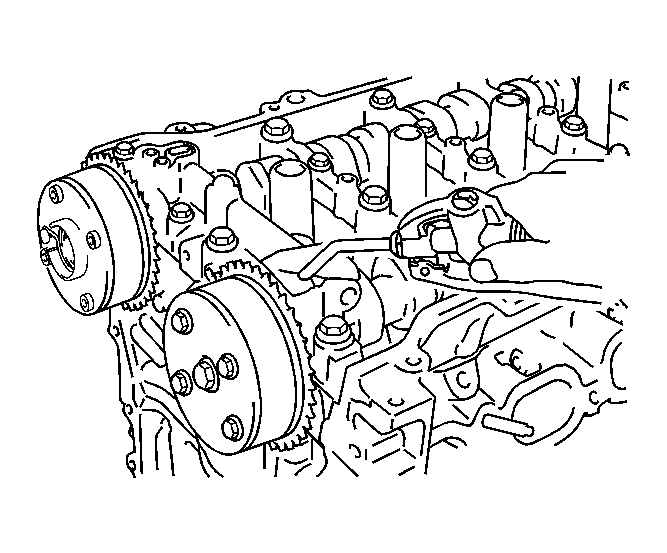

  3. Fig 2: Checking For Air Leaks
    GM2016722Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • The camshaft timing gear assembly may be turned in the advance direction without applying any force.
    • If enough air pressure cannot be applied because of air leakage from the port, releasing the lock pin may be difficult.
    • If air leaks out, reattach the adhesive tape.
    • Cover the oil hole with a shop rag or piece of cloth when applying air pressure to prevent oil from spraying.
    • Do not lock the camshaft timing gear assembly. If it is locked, release the lock pin again.
  4. Apply approximately 150 kPa (22 psi) of air pressure to the hole pricked in procedure A to release the lock pin.
  5. Remove the adhesive tape from the No. 1 camshaft bearing cap.

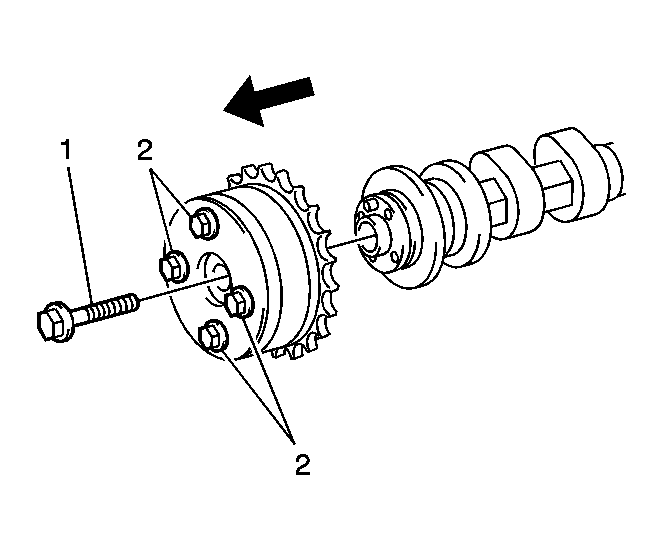

  6. Fig 3: View Of Camshaft Timing Gear & Bolts
    GM2016730Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Before removing the camshaft timing gear, make sure that the lock pin has been released.
    • Be sure not to remove the other 4 bolts.
    • Keep the camshaft timing gear assembly horizontal while removing it from the camshaft.
  7. Remove the flange bolt while holding the hexagonal portion of the camshaft, and then remove the camshaft timing gear assembly.
  8. Fig 4: View Of Exhaust camshaft Timing Gear & Bolt
    GM2017062Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Be sure not to remove the other 4 bolts.
    • Keep the camshaft timing exhaust gear assembly horizontal while removing it from the camshaft.
  9. Remove the flange bolt while holding the hexagonal portion of the camshaft, and then remove the camshaft timing exhaust gear assembly.
