Rear Seat Armrest Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

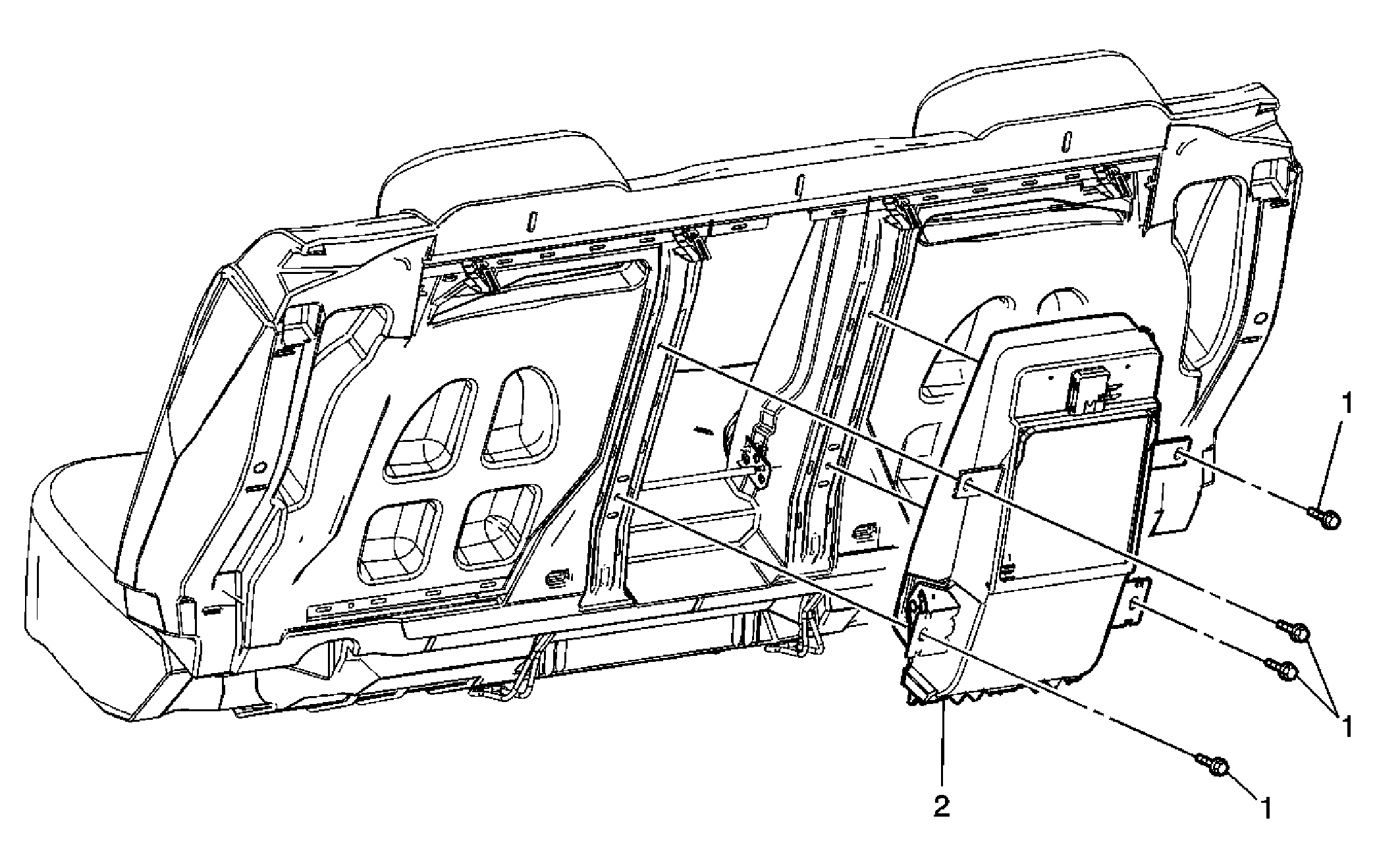

Fig 1: Identifying Rear Seat Armrest & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement .
1	Rear Seat Armrest Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Seat Armrest Assembly

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement .

Rear Seat Armrest Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Rear Seat Armrest Assembly
