Rear Seat Armrest Closeout Panel Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

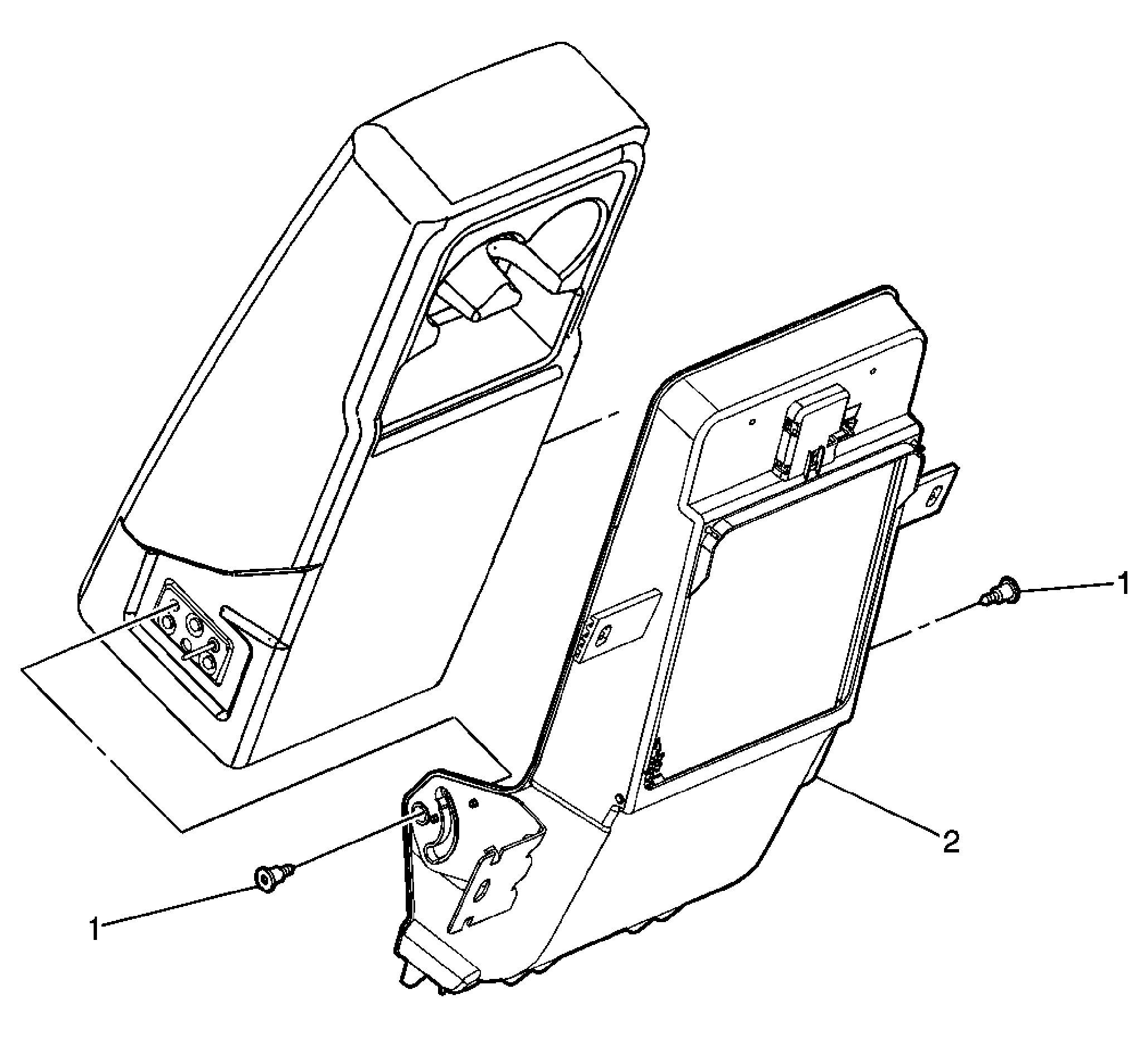

Fig 1: Rear Seat Armrest Closeout Panel & Bolts
GM2217387Courtesy of GENERAL MOTORS COMPANY
Rear Seat Armrest Closeout Panel Replacement

Callout Component Name
Preliminary Procedure
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
1 Rear Seat Armrest Closeout Panel Support Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Rear Seat Armrest Closeout Panel
