Front Bumper Fascia Air Deflector Replacement (SS)

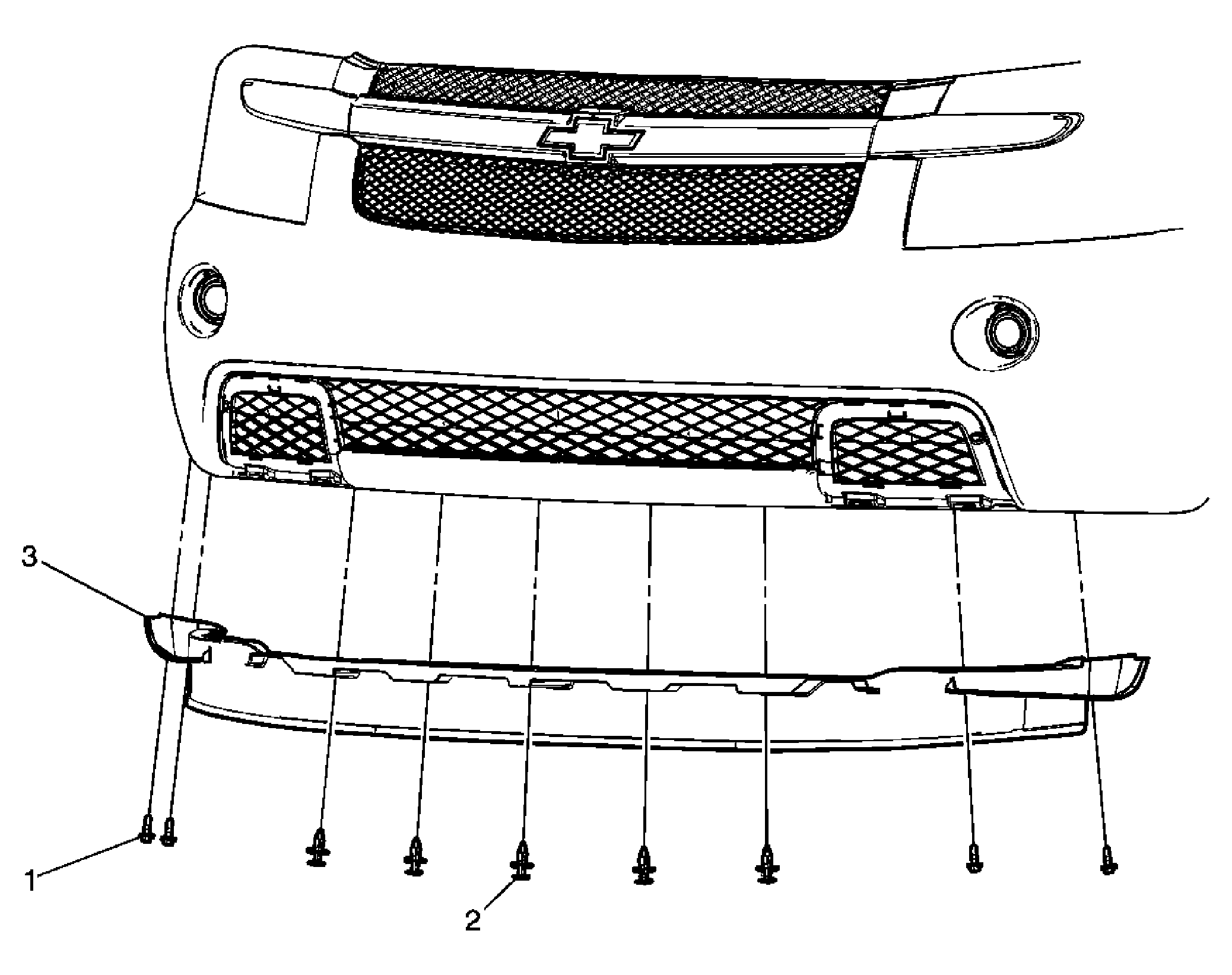

Fig 1: Identifying Front Bumper Fascia Air Deflector (SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Bumper Fascia Air Deflector Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Front Bumper Fascia Air Deflector Retainer (Qty: 12)
3	Front Bumper Fascia Air Deflector
