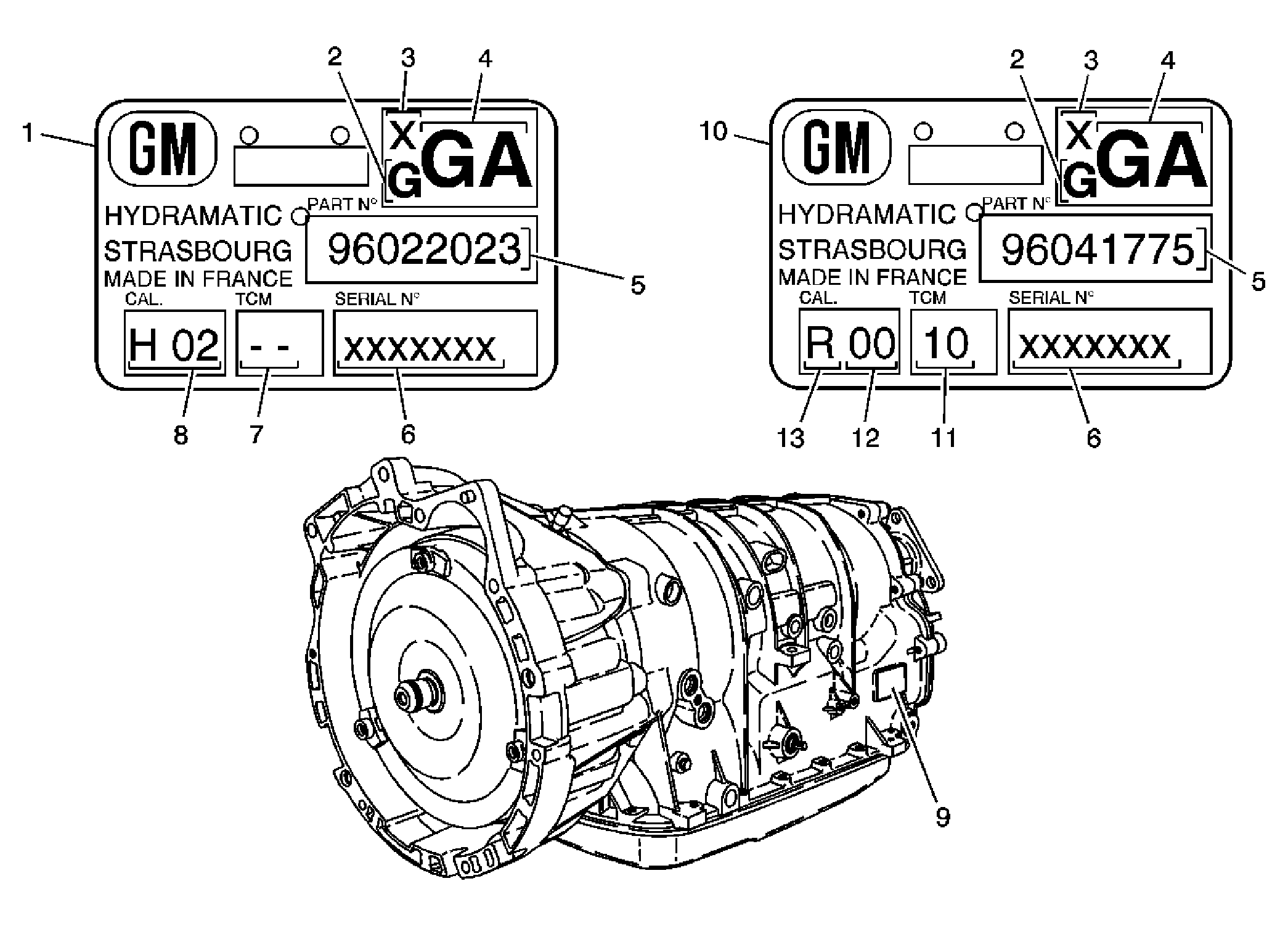

Transmission Identification Information
| Callout | Component Name |
|---|---|
| 1 | Production or Service New |
| 2 | Transmission Family - G for 5L40 |
| 2 | Transmission Family - G for 5L40 |
| 3 | Model Year |
| 3 | Model Year |
| 4 | Alpha Code |
| 4 | Alpha Code |
| 5 | Part Number |
| 5 | Part Number |
| 6 | Serial Number |
| 6 | Serial Number |
| 7 | Empty |
| 8 | Calibration Code |
| 9 | ID Tag Location |
| 10 | Remanufactured |
| 11 | Remanufactured Date - Week |
| 12 | Remanufactured Date - Year |
| 13 | R = Remanufactured |
