Instrument Panel Cup Holder Replacement (Solstice)

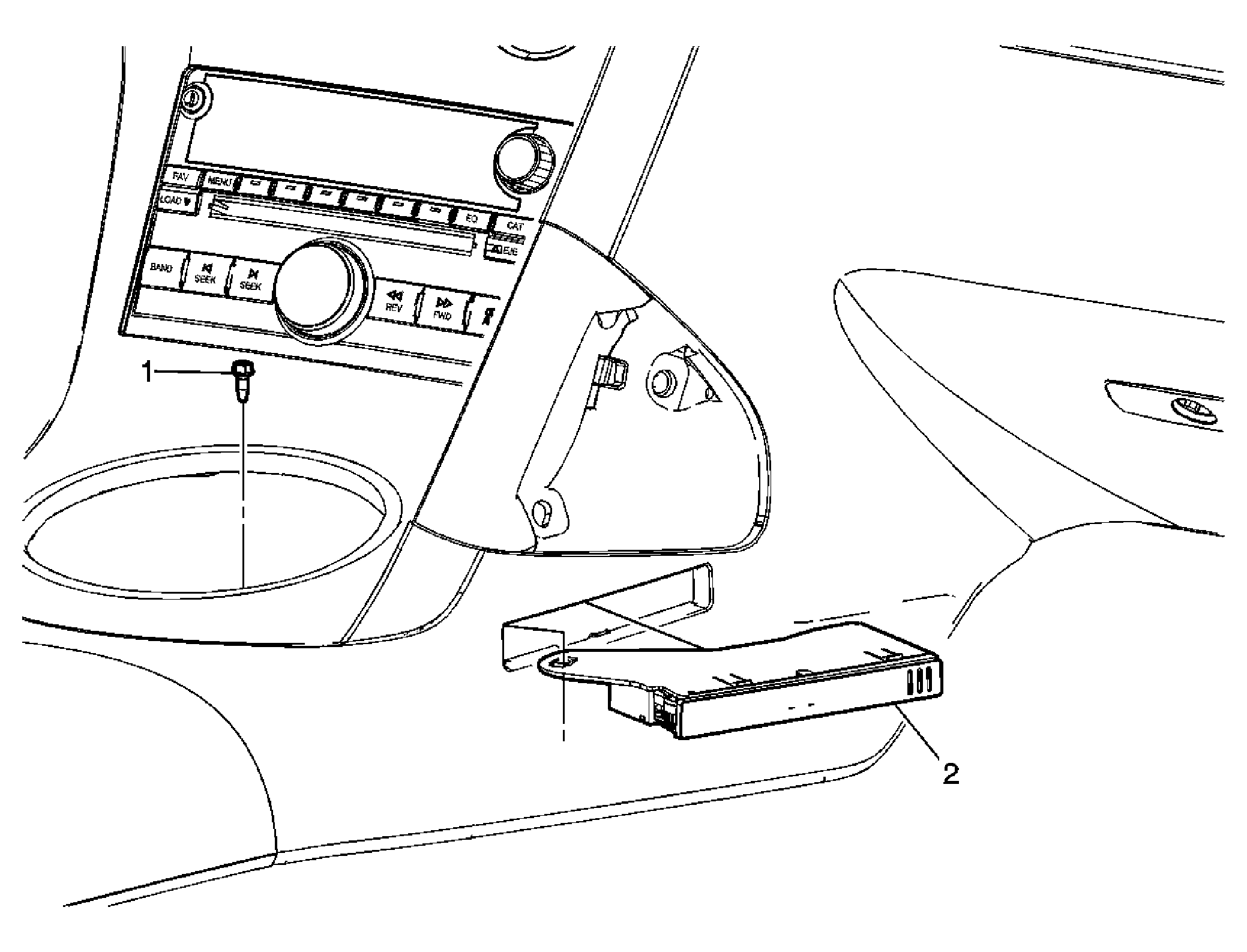

Fig 1: Identifying Instrument Panel Cup Holder (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel assist handle bezel. Refer to Instrument Panel Assist Handle Replacement . Remove the transmission control lever knob, if equipped with an automatic transmission. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) . Remove the Control lever boot assembly, if equipped with a manual transmission. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .
1	Instrument Panel Cupholder Fastener CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	I/P Cupholder Assembly Procedure: Use a small flat-bladed tool to release the retaining tabs through the opening where the assist handle bezel was removed.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assist handle bezel. Refer to Instrument Panel Assist Handle Replacement .
Remove the transmission control lever knob, if equipped with an automatic transmission. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) .
Remove the Control lever boot assembly, if equipped with a manual transmission. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .

Instrument Panel Cupholder Fastener

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

I/P Cupholder Assembly
Procedure:
Use a small flat-bladed tool to release the retaining tabs through the opening where the assist handle bezel was removed.
