Instrument Panel Cup Holder Replacement (SKY)

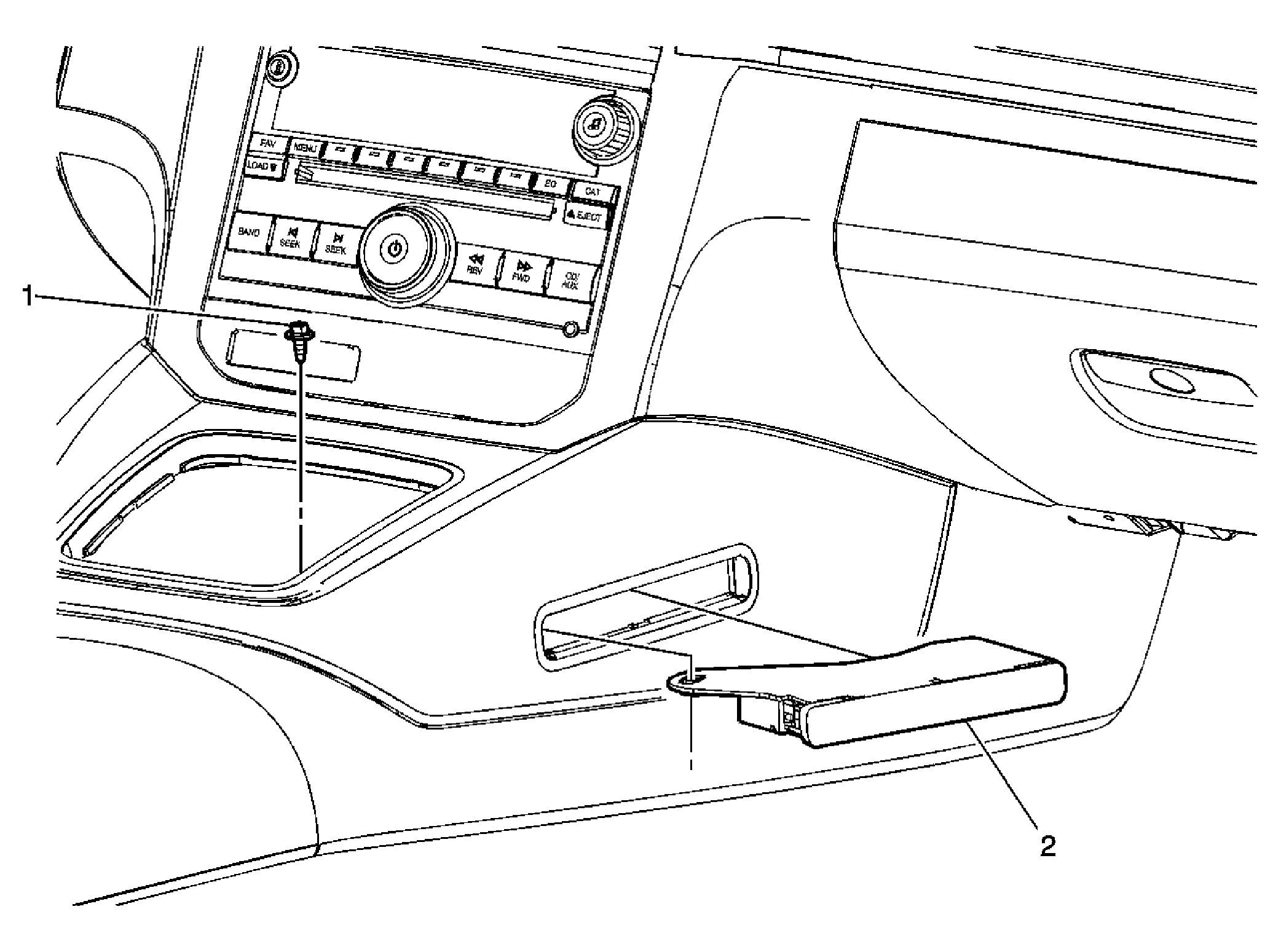

Fig 1: Identifying Instrument Panel Cup Holder (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the transmission control lever knob, if equipped with an automatic transmission. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) . Remove the Control lever boot assembly, if equipped with a manual transmission. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .
1	Instrument Panel Cupholder Fastener CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Cupholder Assembly Procedure: Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cupholder to the console cover.

Callout

Component Name

Preliminary Procedure

Remove the transmission control lever knob, if equipped with an automatic transmission. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) .
Remove the Control lever boot assembly, if equipped with a manual transmission. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .

Instrument Panel Cupholder Fastener

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Cupholder Assembly
Procedure:
Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cupholder to the console cover.
