Front Floor Lower Console Replacement

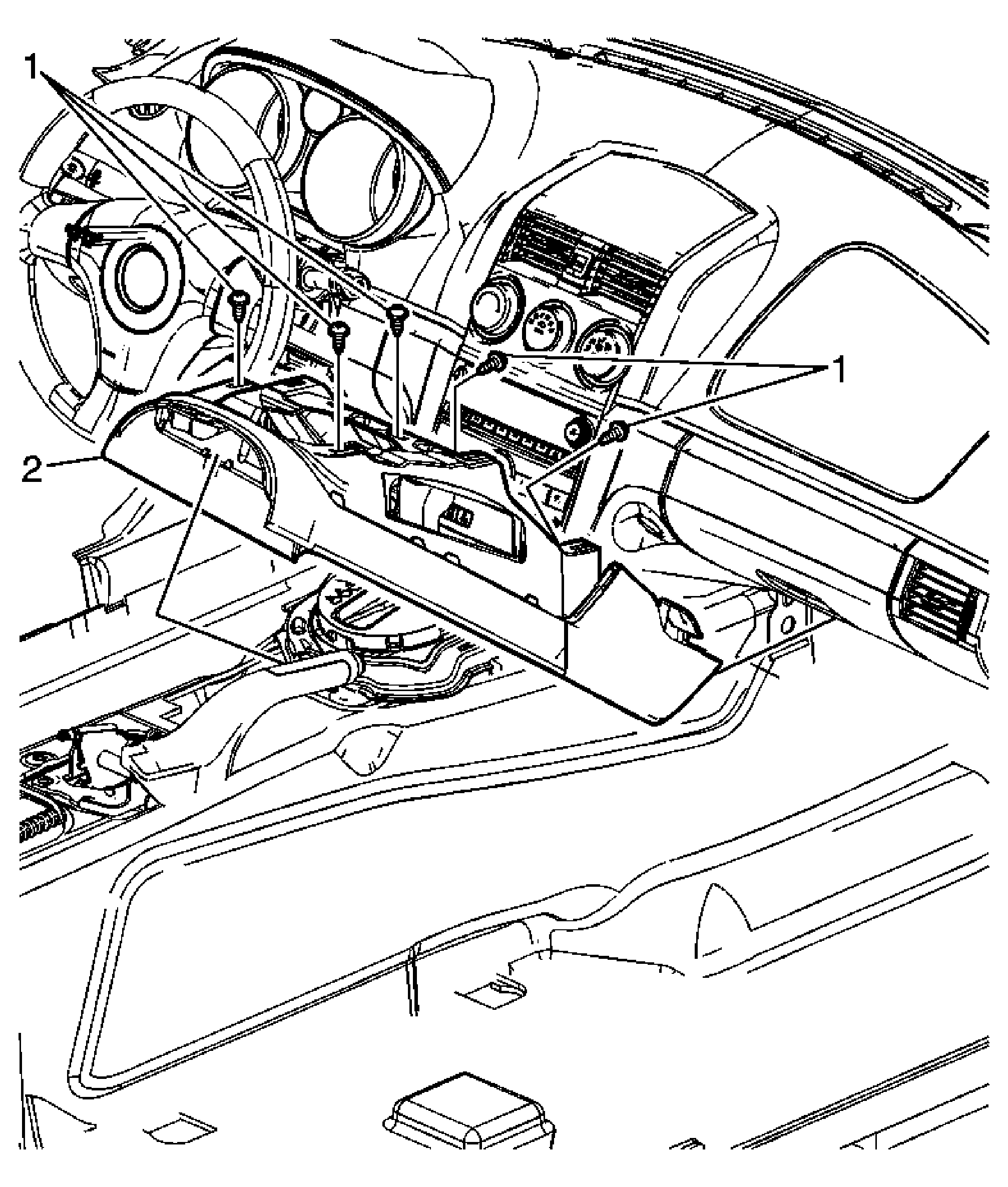

Fig 1: Identifying Front Floor Lower Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console cover assembly. Refer to Front Floor Console Front Cover Replacement (SKY) . Remove the front floor console. Refer to Front Floor Console Replacement (SKY) or Front Floor Console Replacement (Solstice) .
1	Front Floor Lower Console Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Floor Lower Console Assembly

Callout

Component Name

Preliminary Procedures

Front Floor Lower Console Screw (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Front Floor Lower Console Assembly
