Front Floor Console Front Cover Replacement (SKY)

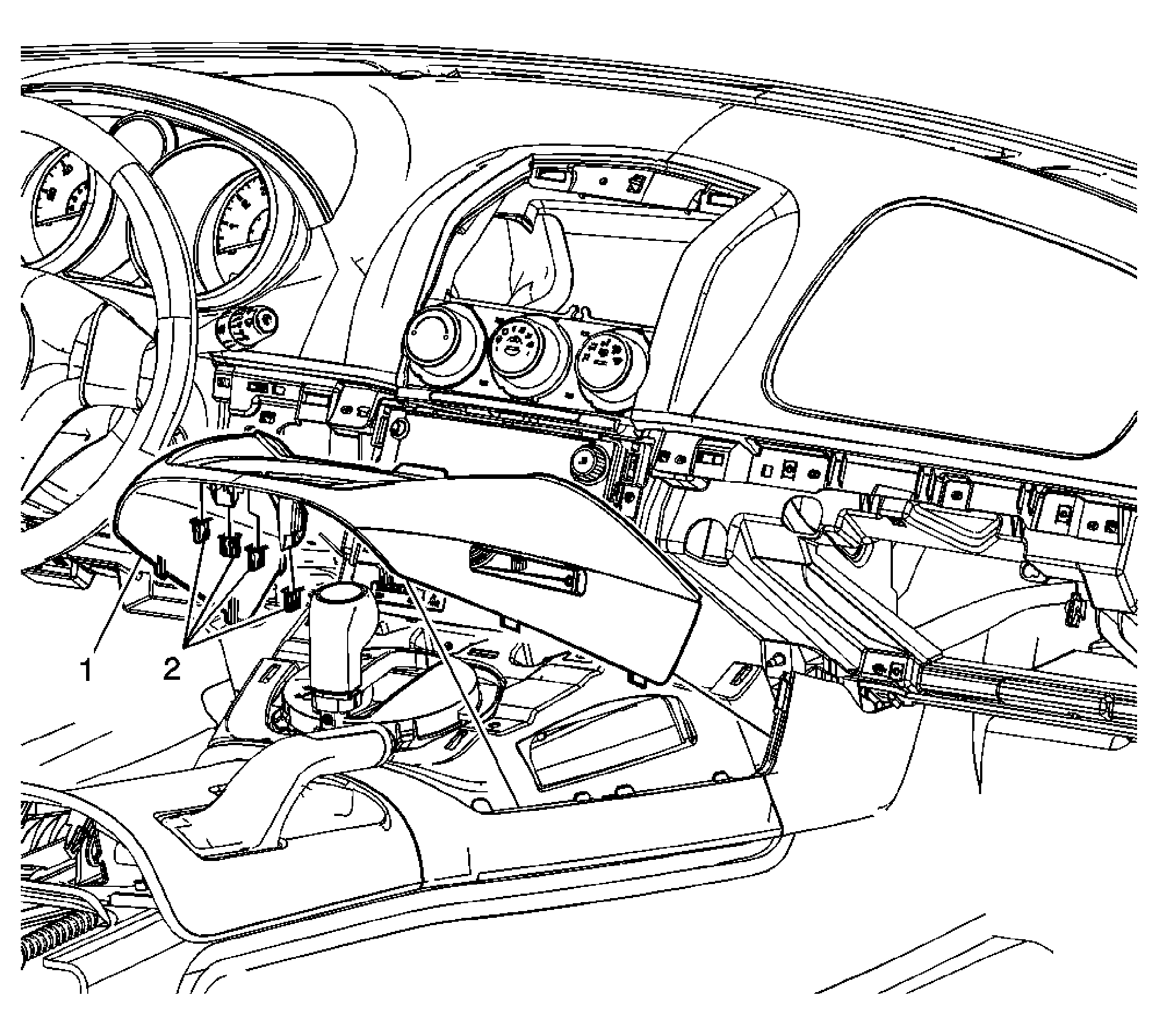

Fig 1: Identifying Front Floor Console Front Cover (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . If equipped with an automatic transmission, remove the shift indicator. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) . If equipped with a manual transmission, remove the shift control lever and/or boot. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .
1	Front Floor Console Cover Assembly Procedure: Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cover to the console.
2	Retainer Clip (Qty: 8)

Callout

Component Name

Preliminary Procedures

Remove the instrument panel (I/P) lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
If equipped with an automatic transmission, remove the shift indicator. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) .
If equipped with a manual transmission, remove the shift control lever and/or boot. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) .

Front Floor Console Cover Assembly
Procedure:
Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cover to the console.

Retainer Clip (Qty: 8)
