Wiring Harness Installation

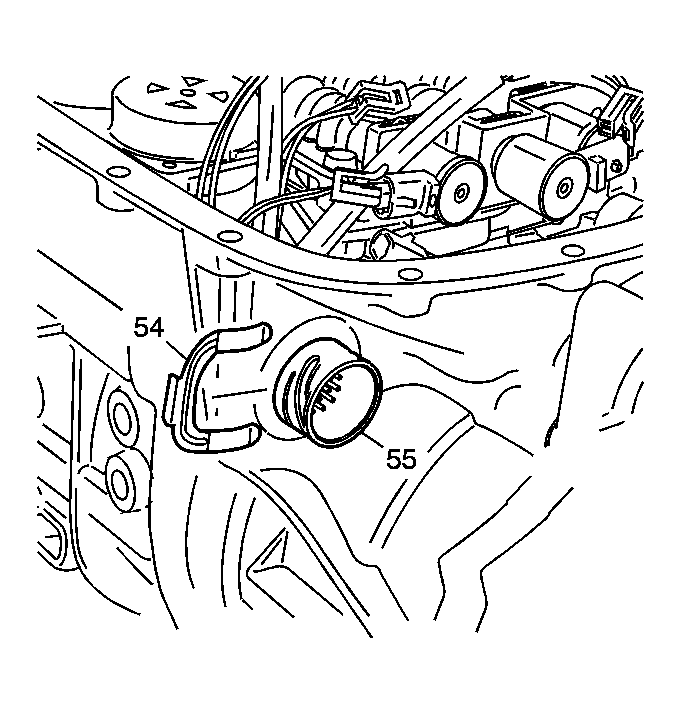

    Fig 1: Identifying Wiring Harness Connector & Retainer
    GM801801Courtesy of GENERAL MOTORS CORP.
  1. Install the wiring harness connector (55) through the case. Hold the connector and install the wiring harness connector retainer (54).
    2. Fig 2: View Of Wiring Harness To Valve Body Components
    GM801799Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness to the valve body and connect the following components:
    • Pressure Control Solenoid (357)
    • TCC PWM Solenoid (352)
    • 1-2 Shift Solenoid (368)
    • 2-3 Shift Solenoid (369)
    • 4-5 Shift Solenoid (376)
    • Internal Mode Switch - IMS (602)
    • Input Speed Sensor (44)
    • Output Speed Sensor (42)
