Installation Procedure

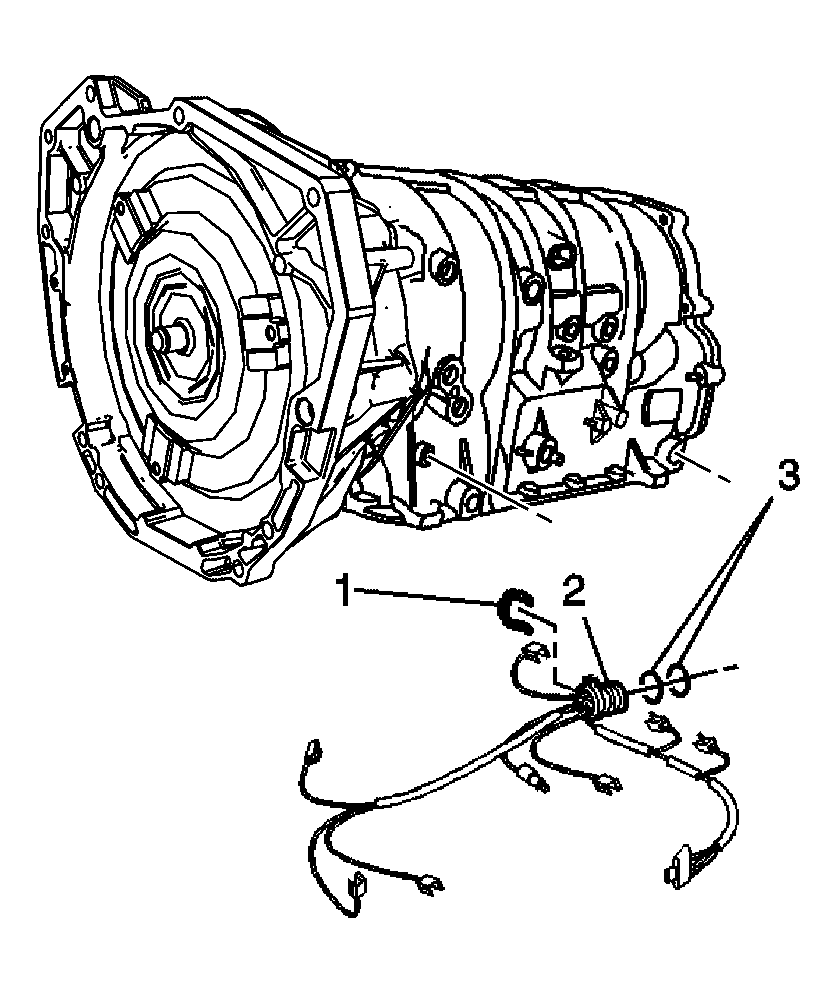

Fig 1: Transmission Internal Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Install the internal wiring harness (2) to the transmission.

Fig 2: Transmission Internal Wiring Harness Retainer

Courtesy of GENERAL MOTORS CORP.

Install the transmission internal wiring harness retainer (2) to the internal wiring harness (1).

Fig 3: View Of Transmission (Pan Removed)

Courtesy of GENERAL MOTORS CORP.

Connect the transmission internal wiring harness to components (1-8).

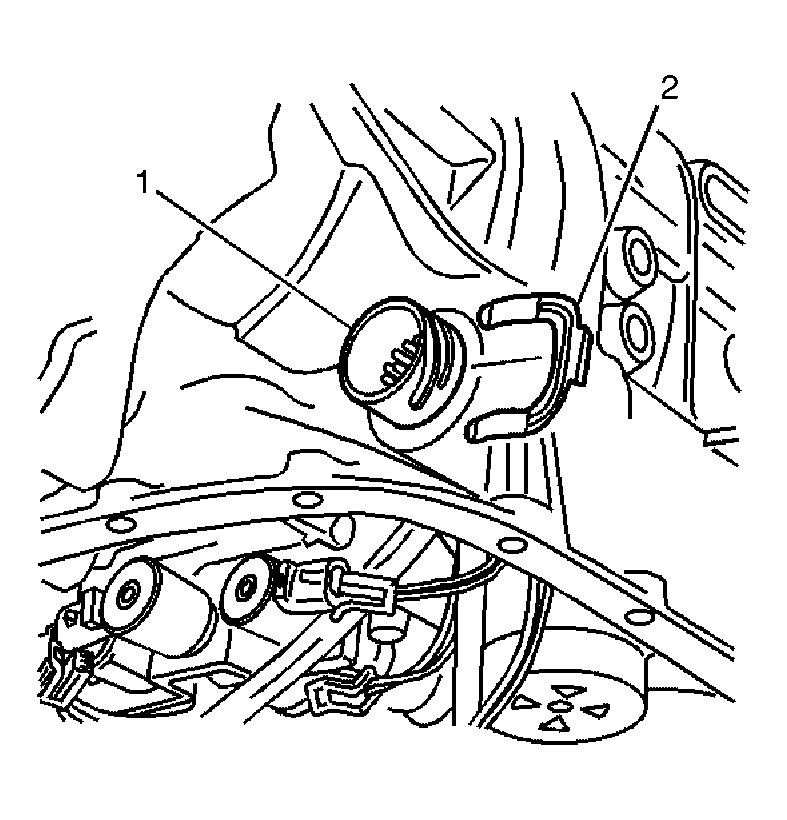

Fig 4: View Of Transmission Wiring Harness Connector & Locking Latch

Courtesy of GENERAL MOTORS CORP.

Connect the transmission wiring harness electrical connector (1) to the transmission by rotating the locking latch (2) clockwise.
Install the Transmission fluid pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement .

IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, The ECM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.

Reset the TAP values. Refer to Transmission Adaptive Functions .
