Transmission Fluid Pump Removal

    Fig 1: Locating Oil Pump To Torque Converter Housing Bolts
    GM801901Courtesy of GENERAL MOTORS CORP.
  1. Remove the fluid pump to torque converter housing bolts (240, 241).

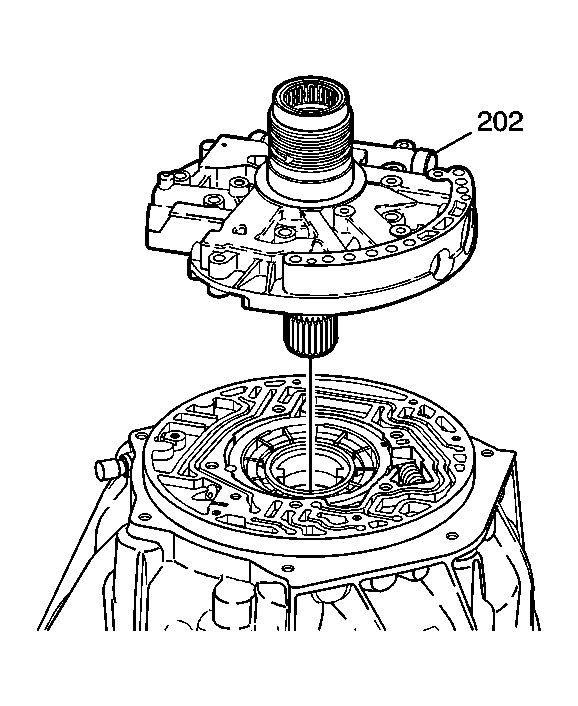

    2. Fig 2: View Of Pump Cover Housing
    GM801902Courtesy of GENERAL MOTORS CORP.
  2. Remove the fluid pump cover (202).
    3. Fig 3: Locating Fluid Pump Vane Ring
    GM801903Courtesy of GENERAL MOTORS CORP.
  3. Remove the fluid pump vane ring (221).
  4. Remove the fluid pump vanes (222).
  5. Remove the fluid pump rotor (223).
  6. Remove the fluid pump rotor guide (224).
  7. Remove the fluid pump vane ring (225).

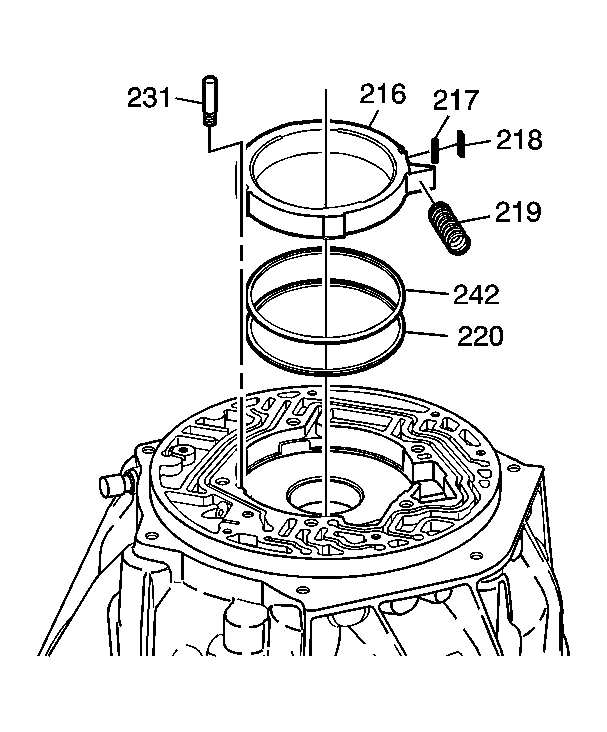

    8. Fig 4: Identifying Fluid Pump Components
    GM801904Courtesy of GENERAL MOTORS CORP.
  8. Remove the fluid pump slide spring (219).
  9. Remove the fluid pump slide (216).
  10. Remove the fluid pump slide pin (231).
  11. Remove the fluid pump slide ring (220, 242).
  12. Remove the fluid pump support (217) and the fluid pump slide seal (218).
