Removal Procedure

    Fig 1: View Of Cooler Line Quick Connect Fitting
    GM104752Courtesy of GENERAL MOTORS CORP.
  1. Remove the plastic cap from the quick connect fitting.
    2. Fig 2: Hooking Retaining Ring Into Quick Connect Fitting
    GM104743Courtesy of GENERAL MOTORS CORP.
  2. Remove the retaining ring from the quick connect fitting.

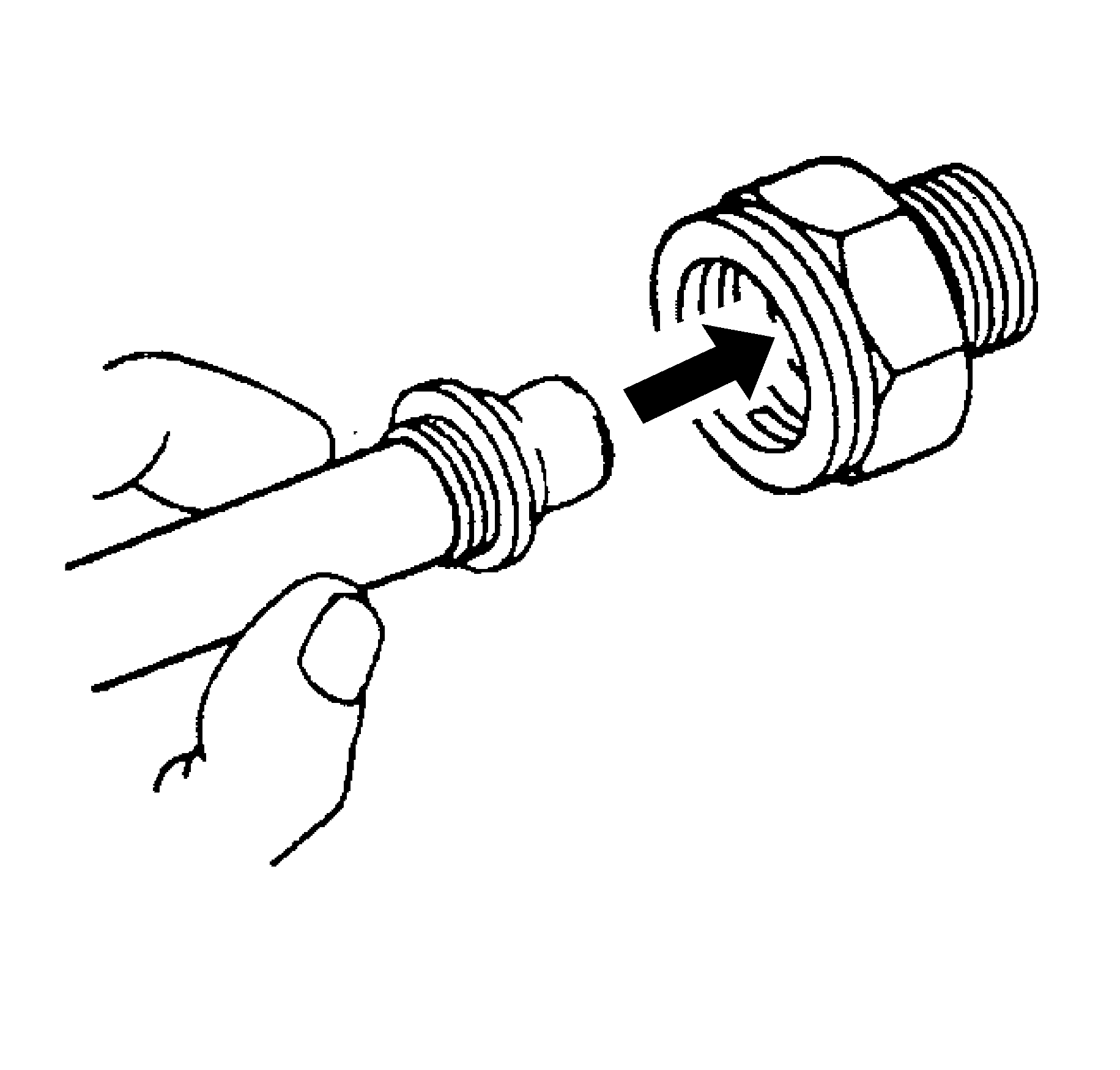

    3. Fig 3: Identifying Cooler Line
    GM1955729Courtesy of GENERAL MOTORS CORP.
  3. Remove the cooler line from the quick connect fitting.
