Installation Procedure

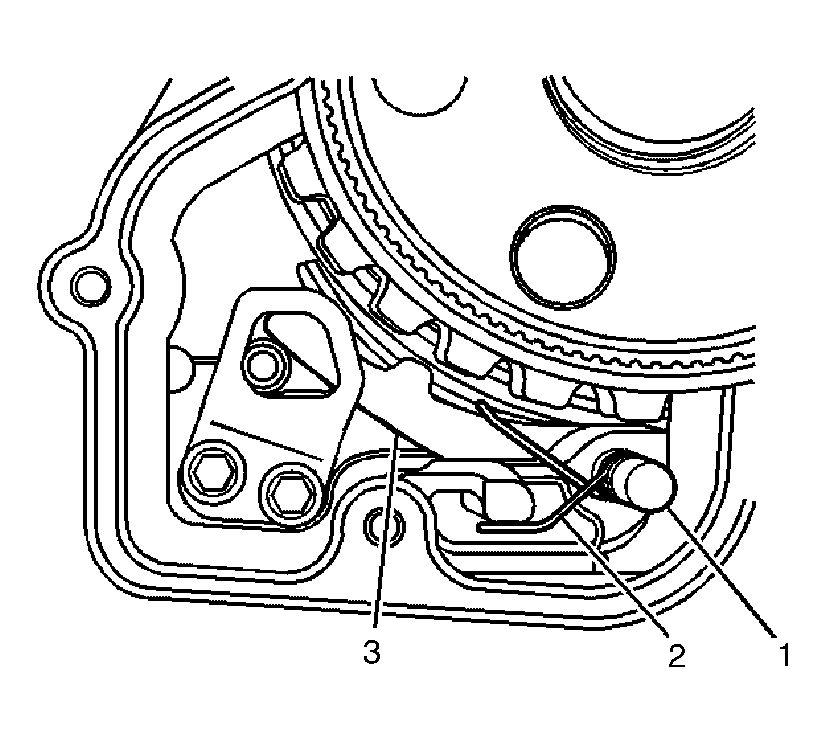

    Fig 1: Parking Pawl
    GM1956867Courtesy of GENERAL MOTORS CORP.
  1. Install the parking pawl (3).
  2. Install the pivot pin (1).
    3. NOTE: The straight end of the spring locates against the case and the hooked end locates over the parking pawl.
  3. Install the parking pawl spring (2).
  4. Install the extension housing. Refer to Case Extension and Gasket Replacement .
  5. Install the transmission support. Refer to Transmission Support Replacement (5L40 and 6L50) .
  6. Remove the transmission jack.
  7. Install the transmission fluid pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement .
  8. Install the propeller shaft. Refer to Propeller Shaft Replacement .
  9. Install the exhaust system. Refer to Exhaust System Replacement (V8 - For Access) or Exhaust System Replacement (V8 - Complete) or Exhaust System Replacement (V6 - For Access) or Exhaust System Replacement (V6 - Complete) .
    10. Fig 2: Identifying Shift Control Linkage Rod
    GM1954218Courtesy of GENERAL MOTORS CORP.
  10. Place the transmission in the park position by rotating the shift shaft fully counter clockwise.
  11. Connect the shift linkage to the transmission.
    12. CAUTION: Refer to Fastener Caution .
  12. Install the transmission manual shift shaft nut and tighten to 15 N.m (11 lb ft).
  13. Fill the transmission to the correct level. Refer to Transmission General Specifications , Fluid Capacity Specifications , and Transmission Fluid Check .
  14. Lower the vehicle.
