Park Engine Running - A/T System Hydraulic Diagram

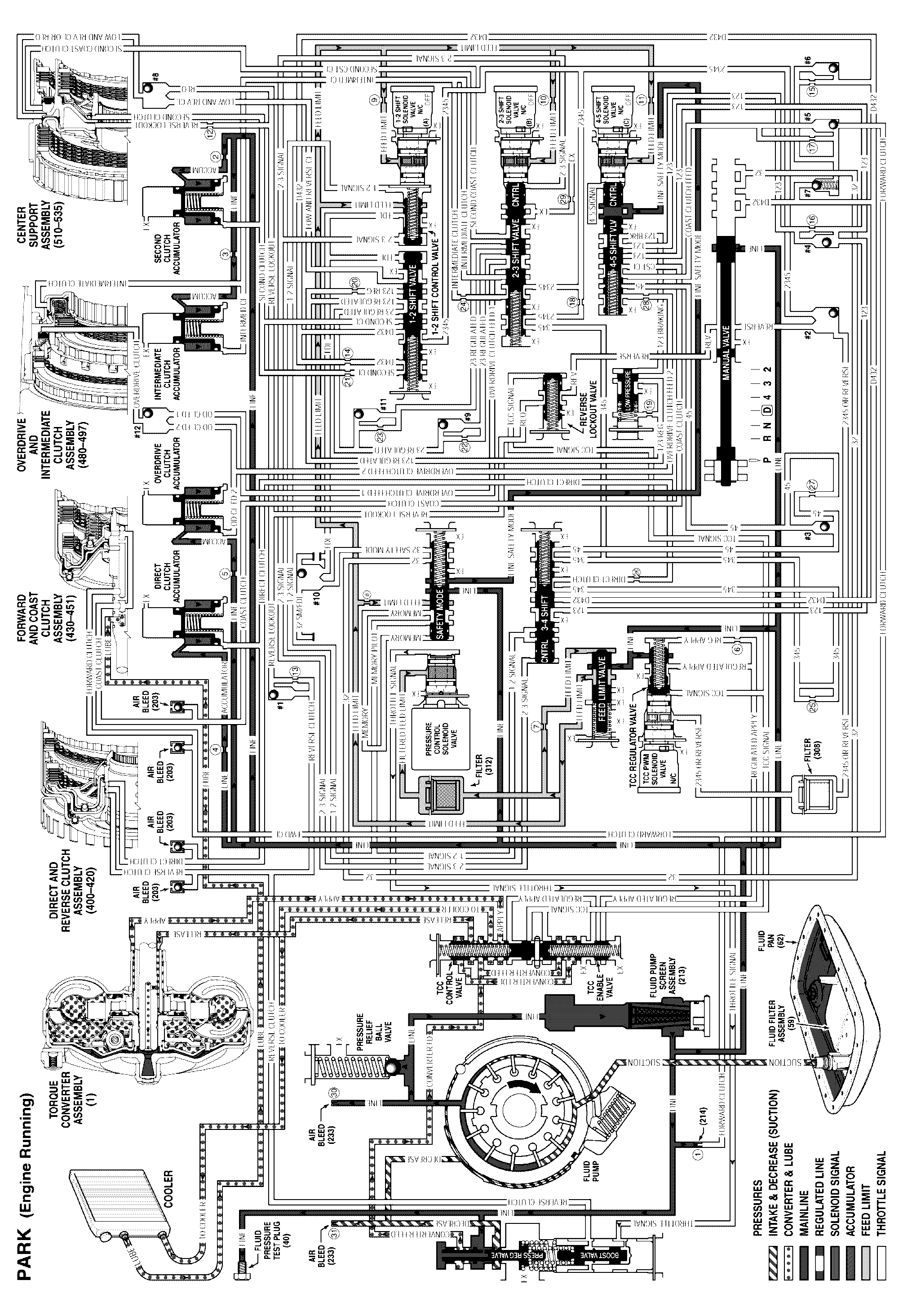

Fig 1: Park Engine Running

GM1960842

Courtesy of GENERAL MOTORS CORP.
