Automatic Transmission - 5L40-E - Removal & Installation, Service, Overhaul, Troubleshooting & Diagnosis
>>
Overdrive Range, Third Gear
>>
Overdrive Range, Third Gear - A/T System Hydraulic Diagram
Overdrive Range, Third Gear - A/T System Hydraulic Diagram

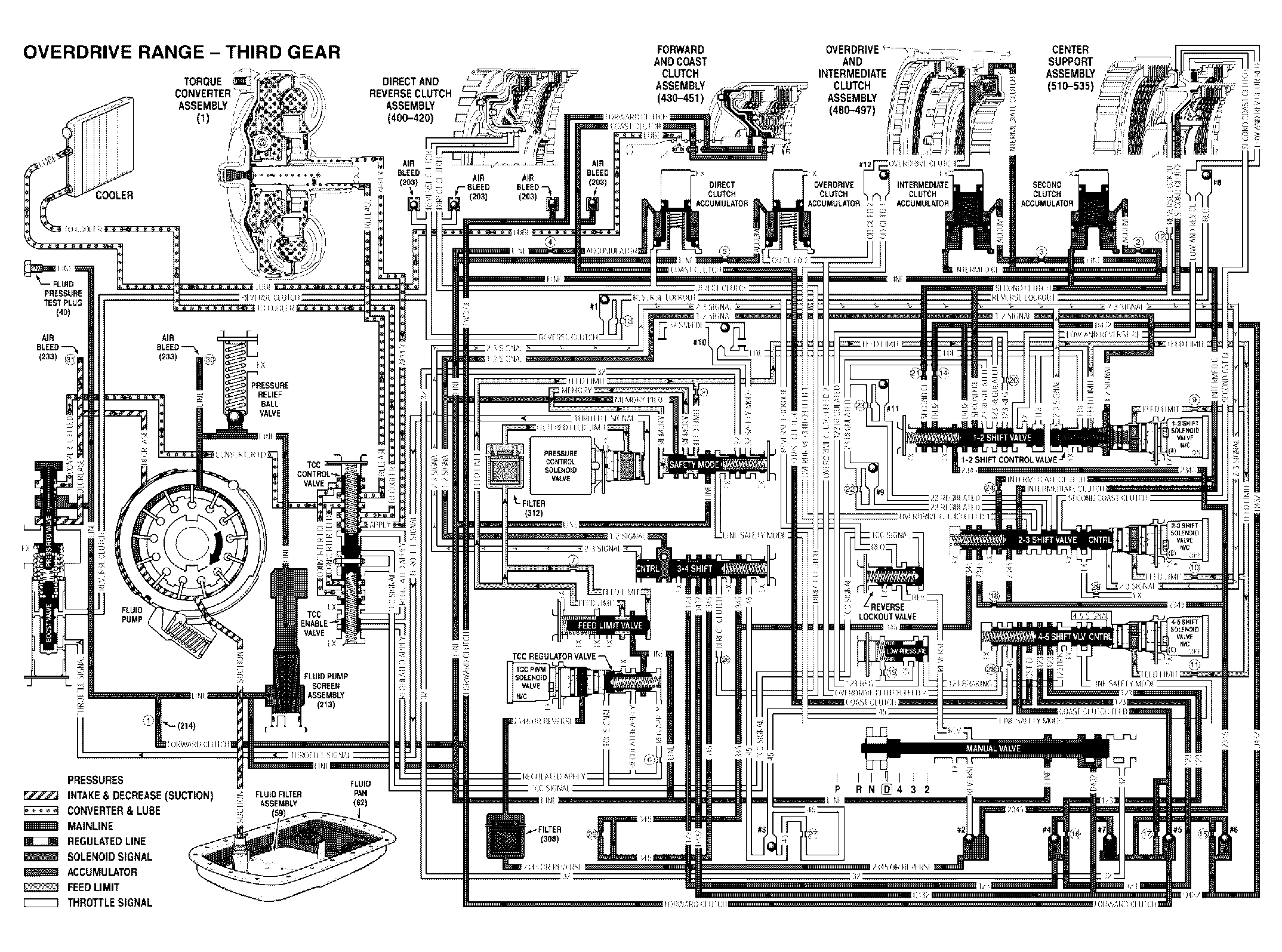

Fig 1: Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Applied
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
