Overdrive Range, First Gear (Before First 1-2 Shift) - A/T System Hydraulic Diagram

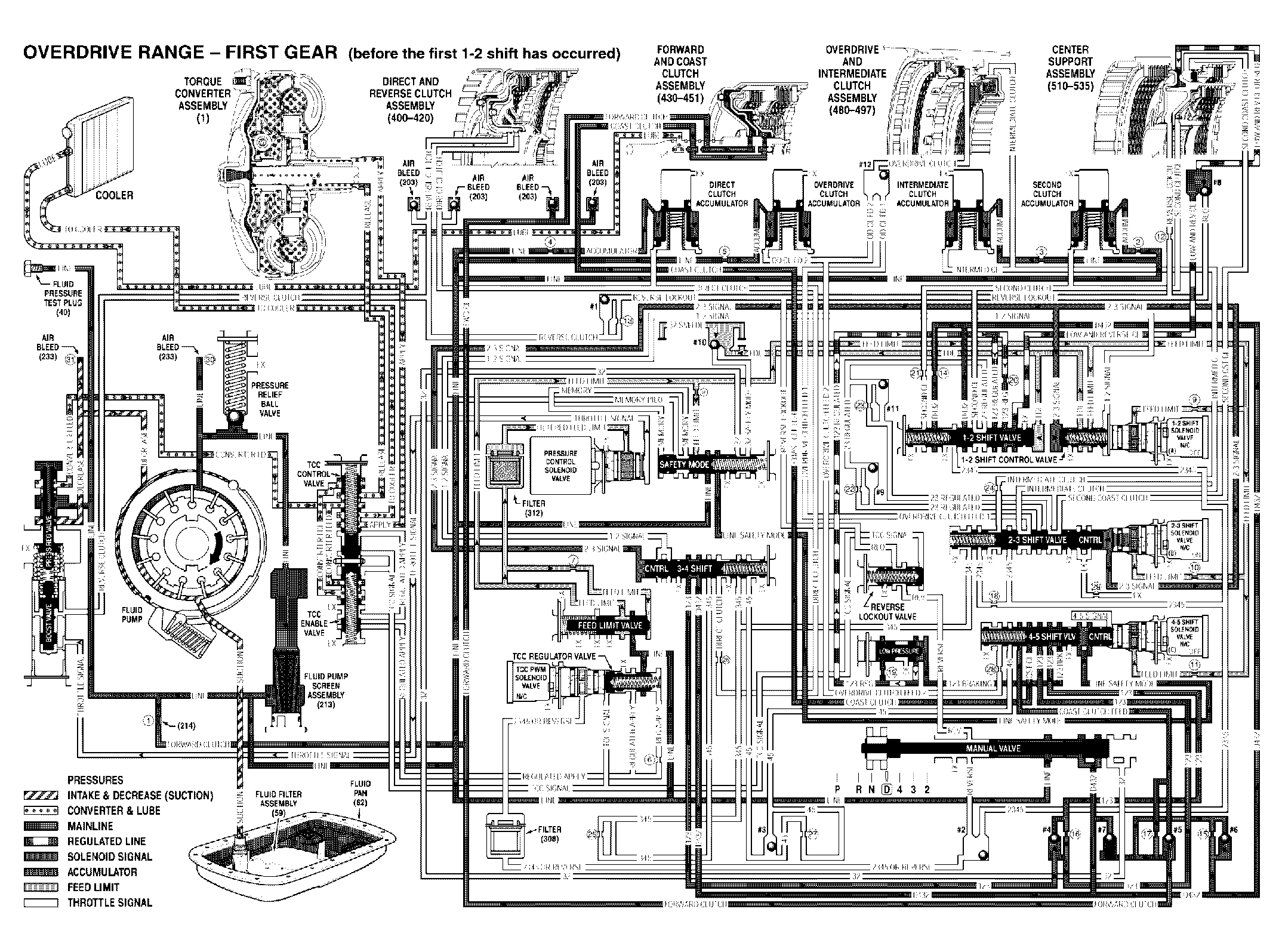

Fig 1: Overdrive Range, First Gear (Before First 1-2 Shift)
GM1960845Courtesy of GENERAL MOTORS CORP.
