Output Shaft and Rear Internal Ring Gear Assemble
Courtesy of GENERAL MOTORS CORP.

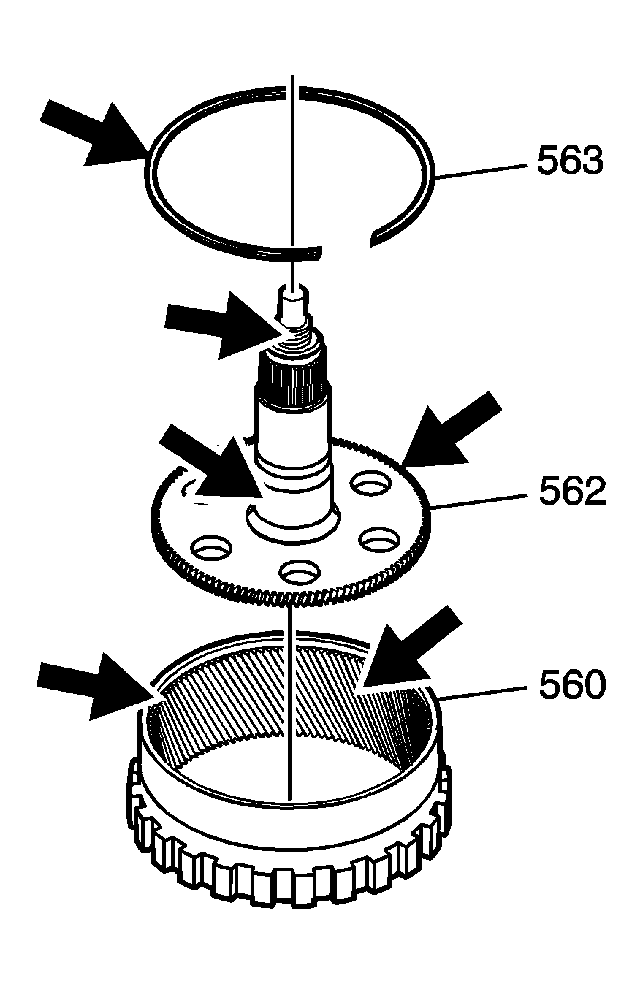

- Inspect the output shaft (562) and the rear internal gear (560) for the following:
- Damaged or worn bushings
- Damaged splines
- Damaged or worn snap ring (563)
- Damaged or worn gear teeth
- Damaged or worn snap ring groove
- Damaged or cross-threaded threads
- Damaged or worn bearings
Courtesy of GENERAL MOTORS CORP.
- Install the output shaft (562) into the rear internal gear (560).
- Install the snap ring (563) onto the rear internal ring gear (560). Be sure it is seated in the groove.
Courtesy of GENERAL MOTORS CORP.
- Rotate the transmission 90 degrees.
- Install the ouput shaft assembly (21) into the case.
