Neutral Engine Running - A/T System Hydraulic Diagram

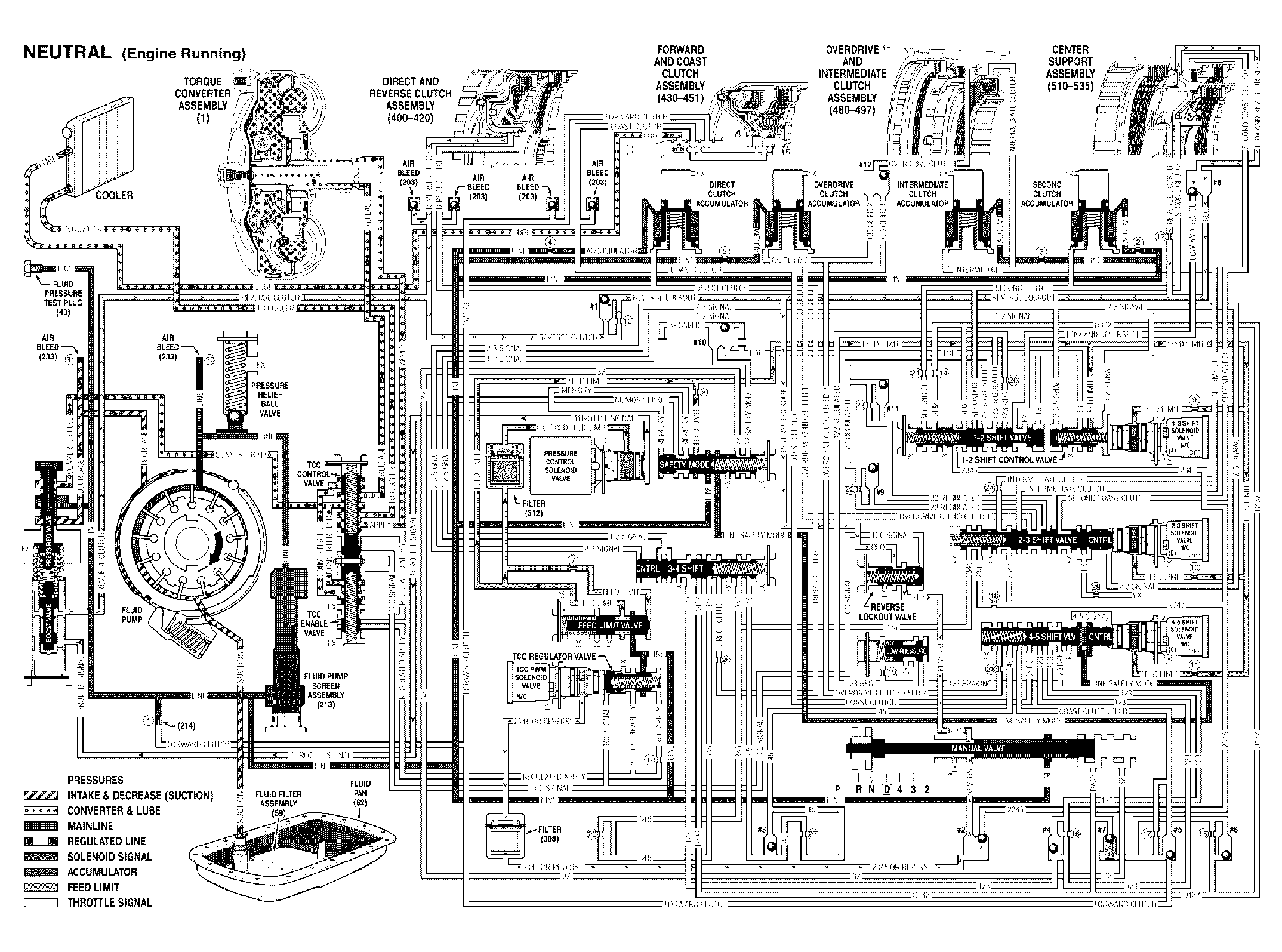

Fig 1: Neutral Engine Running

GM1960844

Courtesy of GENERAL MOTORS CORP.
