Manual Third Gear - A/T System Hydraulic Diagram

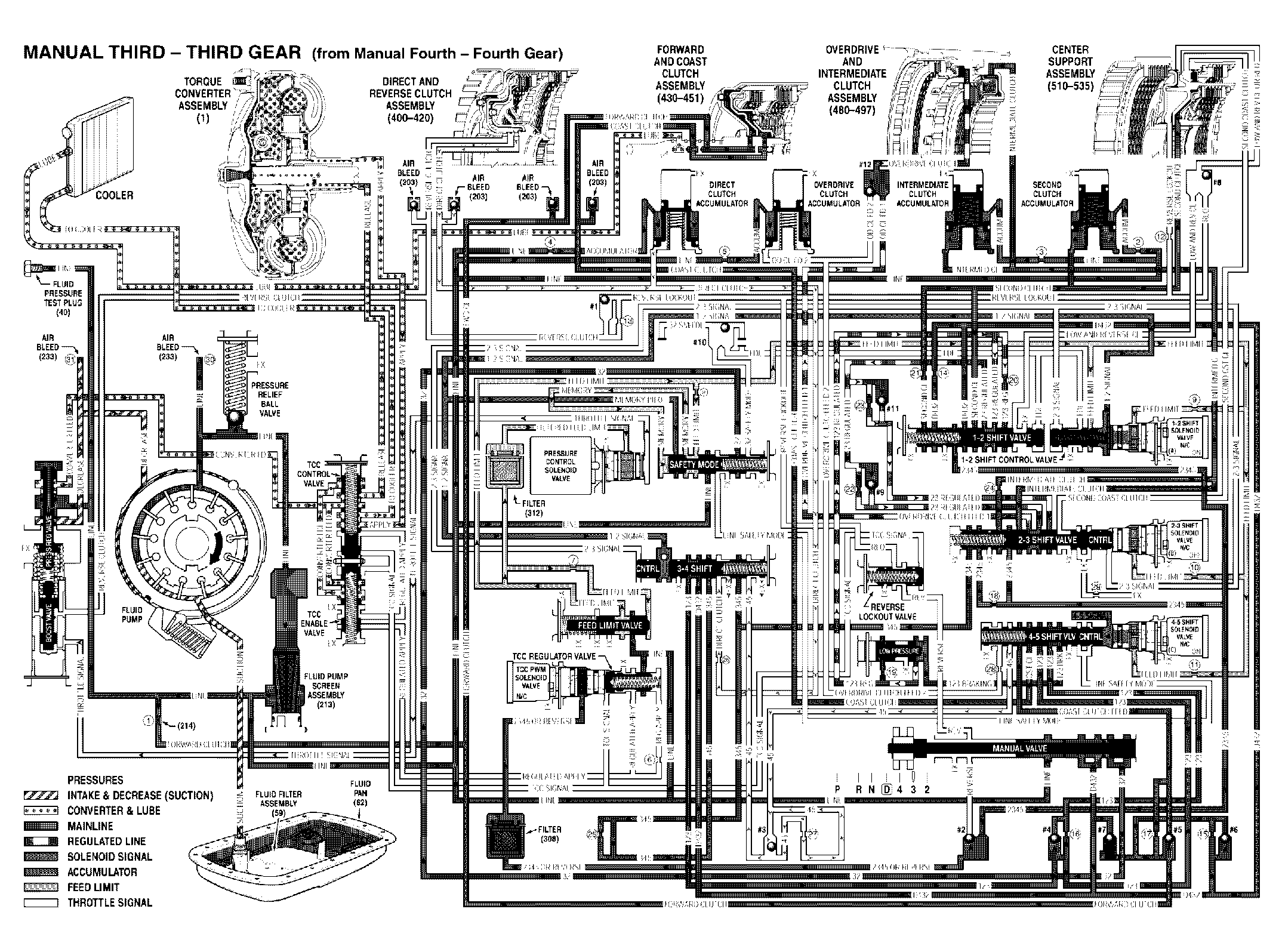

Fig 1: Manual Third Gear

GM1960853

Courtesy of GENERAL MOTORS CORP.
