Manual Second Gear - A/T System Hydraulic Diagram

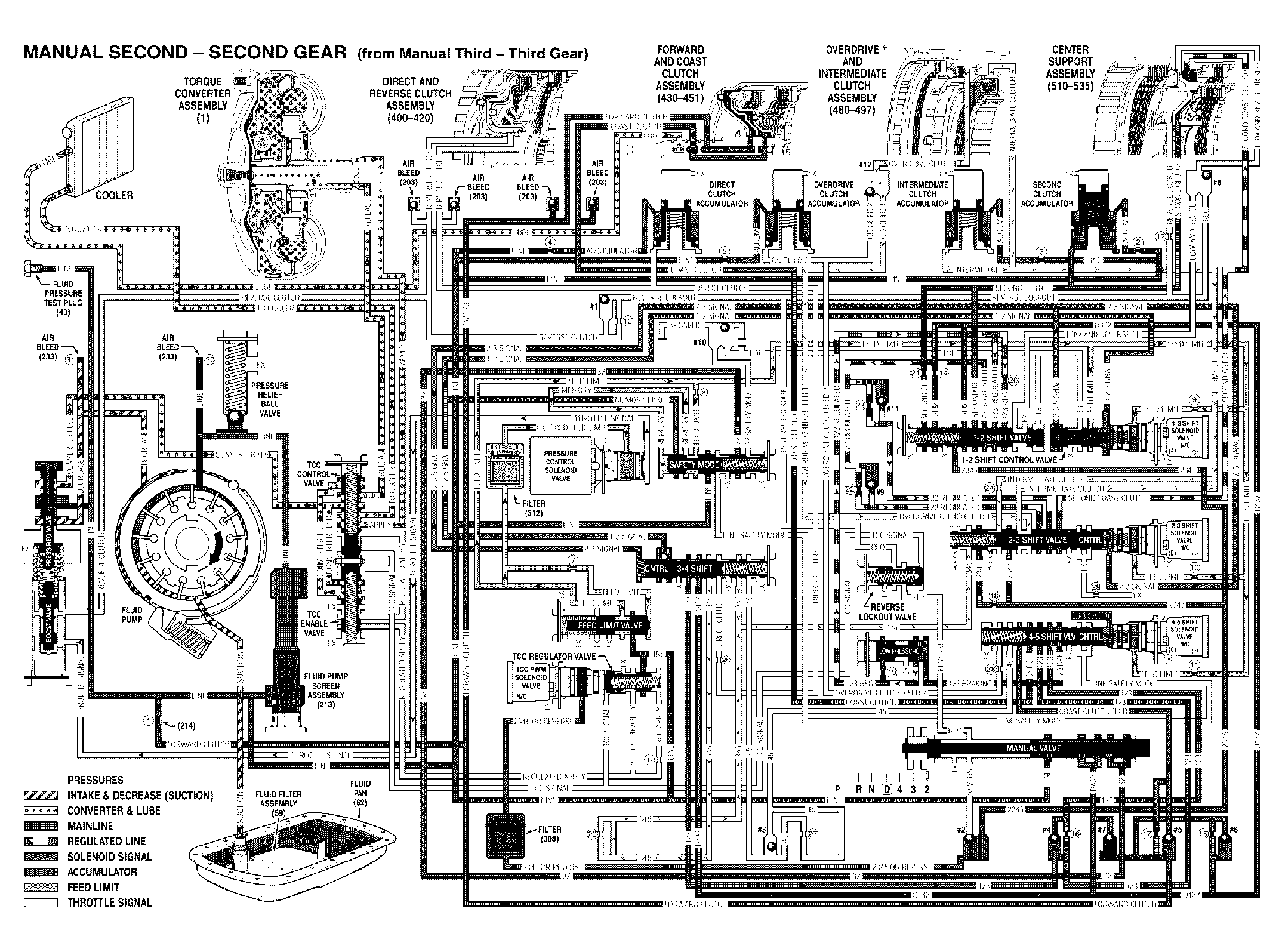

Fig 1: Manual Second Gear

GM1960854

Courtesy of GENERAL MOTORS CORP.
