Manual Second - First Gear - A/T System Hydraulic Diagram

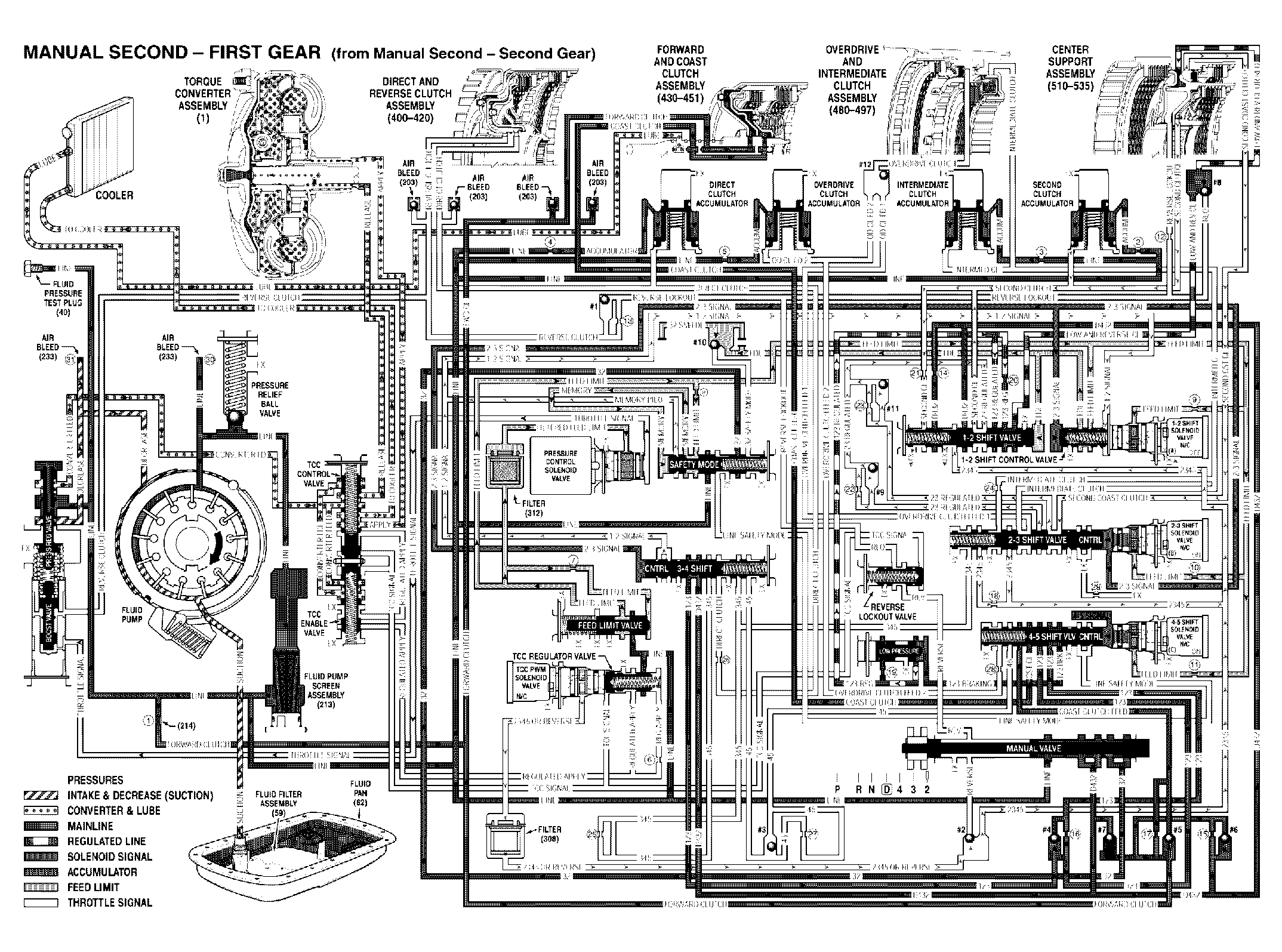

Fig 1: Manual Second - First Gear

GM1960855

Courtesy of GENERAL MOTORS CORP.
