Manual Fourth Gear - A/T System Hydraulic Diagram

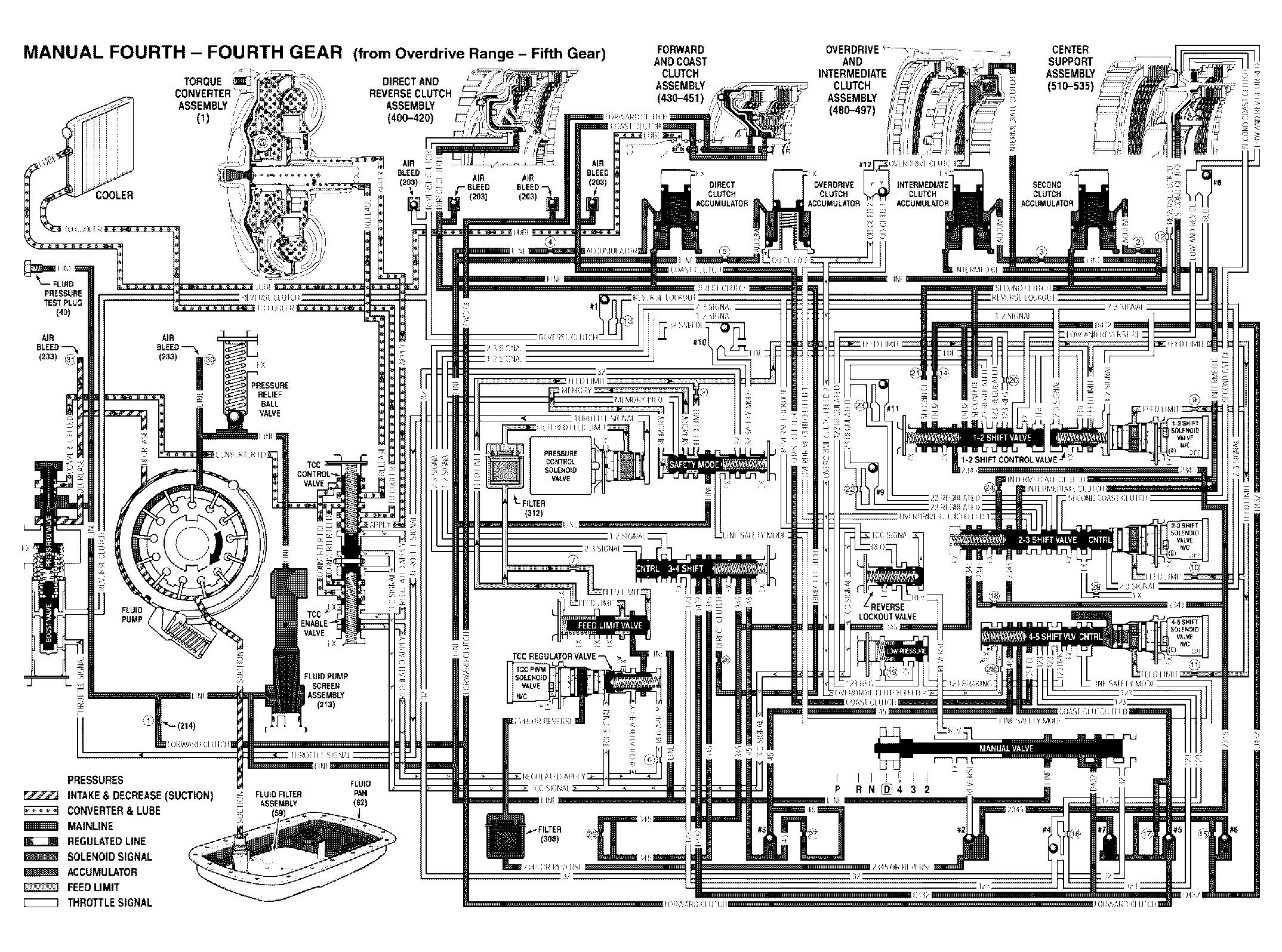

Fig 1: Manual Fourth Gear

GM1960852

Courtesy of GENERAL MOTORS CORP.
