Input and Reaction Carrier Disassemble

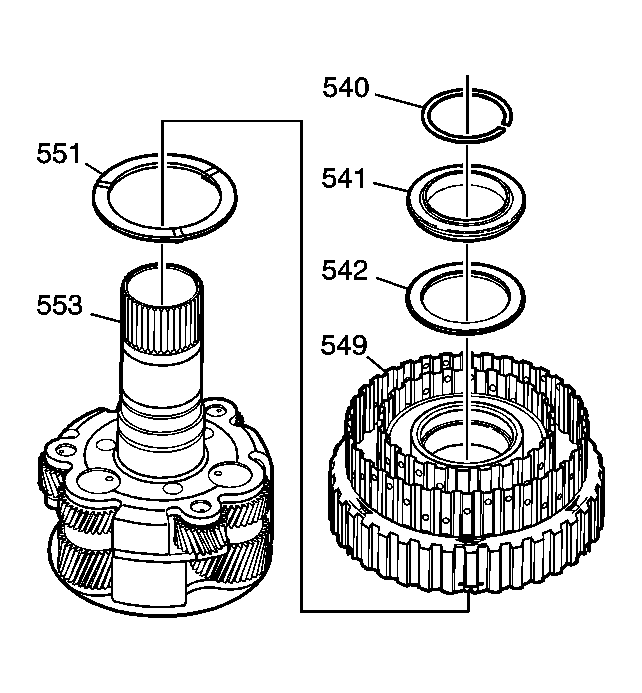

    Fig 1: Input and Reaction Carrier Components
    GM801840Courtesy of GENERAL MOTORS CORP.
  1. Remove the snap ring (540).
  2. Remove the input and reaction bearing (541).
  3. Remove the 2nd clutch roller inner race bearing (542).
  4. Remove the 2nd clutch sprag (549).
  5. Remove the reaction internal gear flange washer (551).
