Front End Upper Tie Bar Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

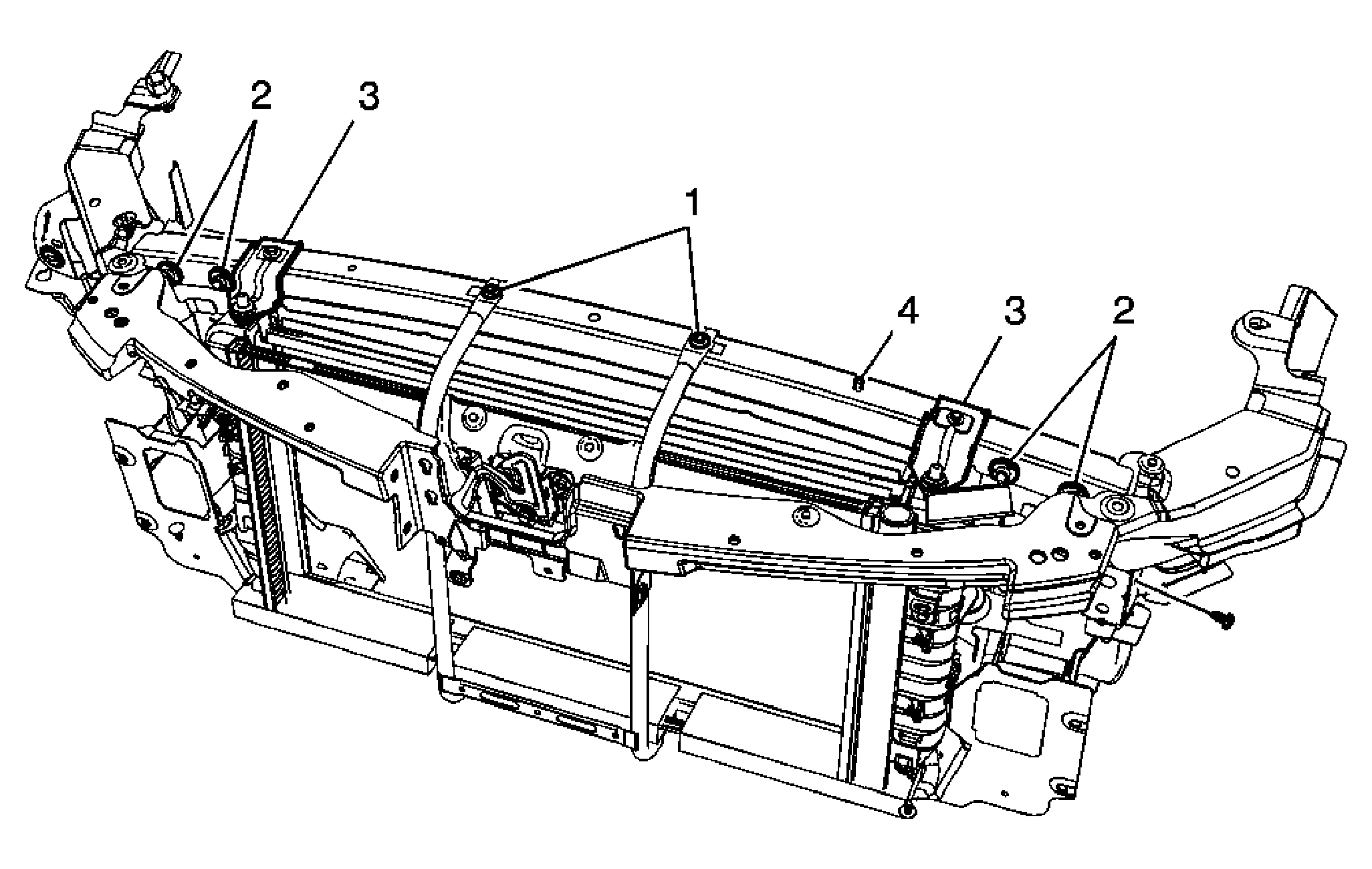

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the sight shield. Refer to Front Compartment Sight Shields Replacement . |
|
| 1 | Front Latch Support Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Upper Tie Bar Bolt (Qty: 4) Tighten: 50 N.m (37 lb ft) |
| 3 | Radiator Upper Support Bracket Bolts (Qty: 2) Refer to Radiator Replacement . |
| 4 | Upper Tie Bar |
