Front Compartment Sight Shields Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

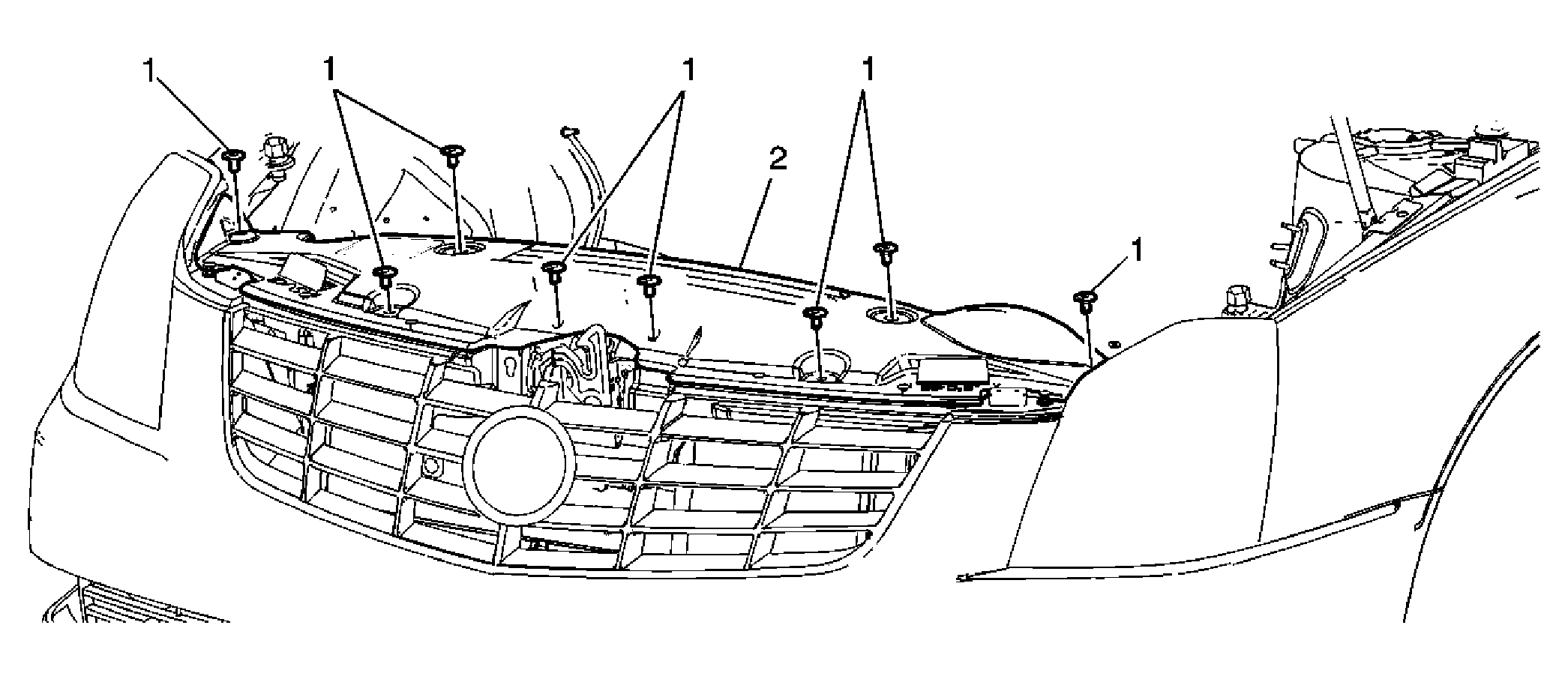

Fig 1: Front Compartment Sight Shields Replacement
GM1576715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer, Radiator Support Sight Shield (Qty: 8)
2 Sight Shield, Radiator Support
