Driver Information Display Switch Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

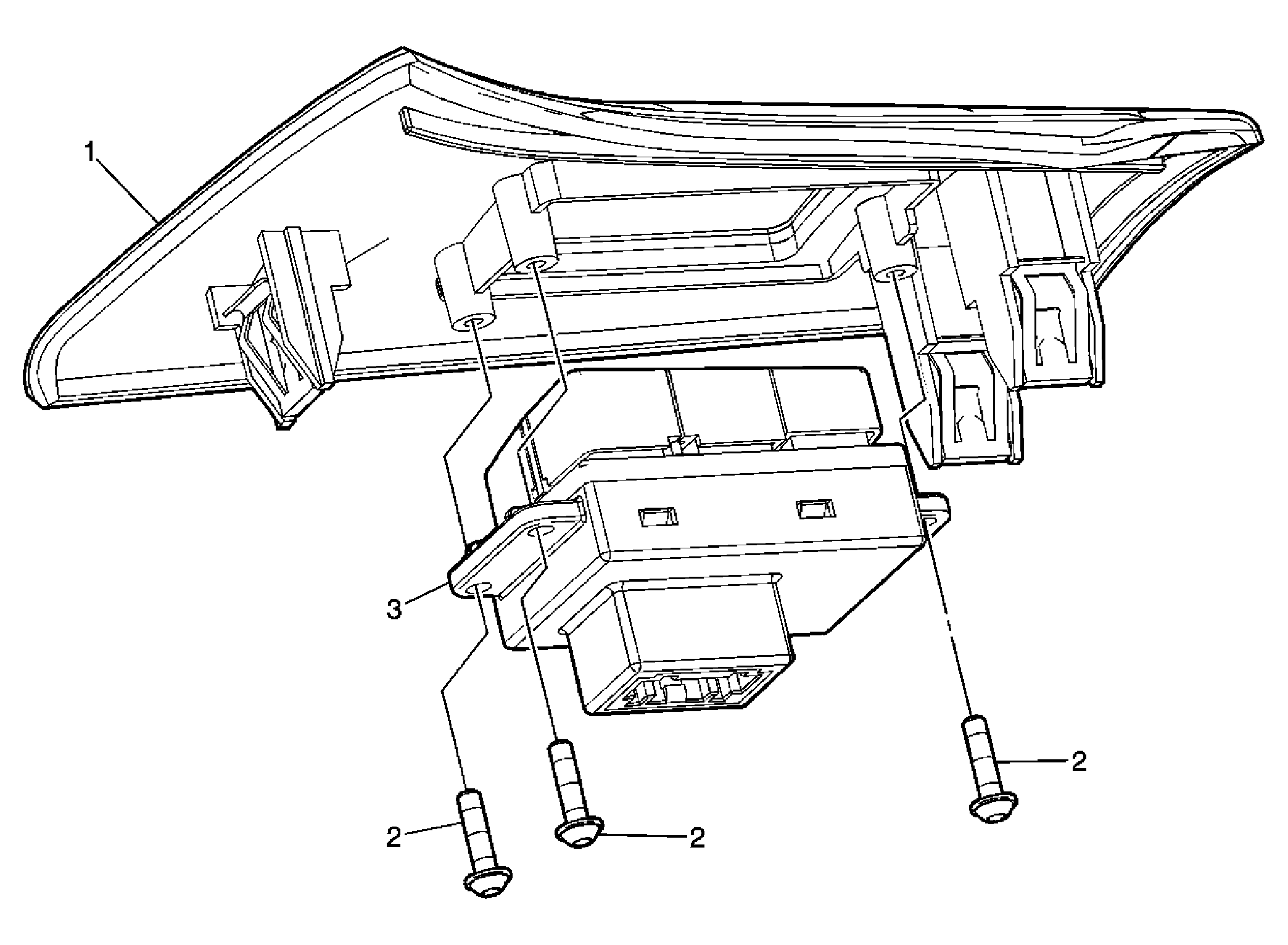

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Trim Plate Assembly Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side |
| 2 | Driver Information Switch Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Driver Information Switch Assembly |
