Rear Window Shelf Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

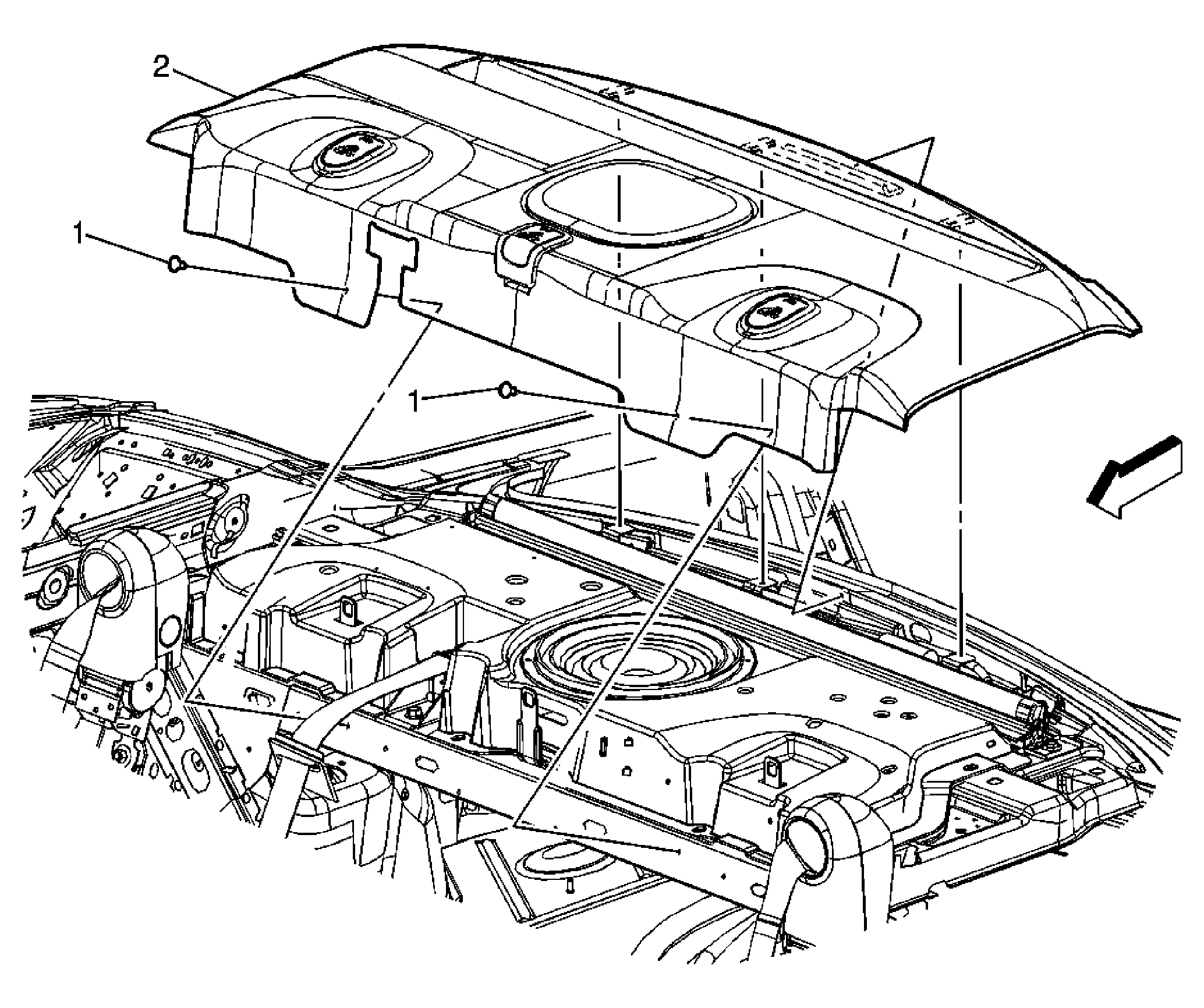

Fig 1: Trim Panel Replacement - Rear Window Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear sail panel. Refer to Sail Panel Replacement . Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement . Preliminary Procedure:
1	Rear Window Trim Retainer (Qty: 2)
2	Rear Window Trim Assembly Tip: Remove the center seat belt guide and belt from panel.

Callout

Component Name

Preliminary Procedures

Remove the rear sail panel. Refer to Sail Panel Replacement .
Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement .

Preliminary Procedure:

Rear Window Trim Retainer (Qty: 2)

Rear Window Trim Assembly
Tip: Remove the center seat belt guide and belt from panel.
