Rear Compartment Lid Weatherstrip Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

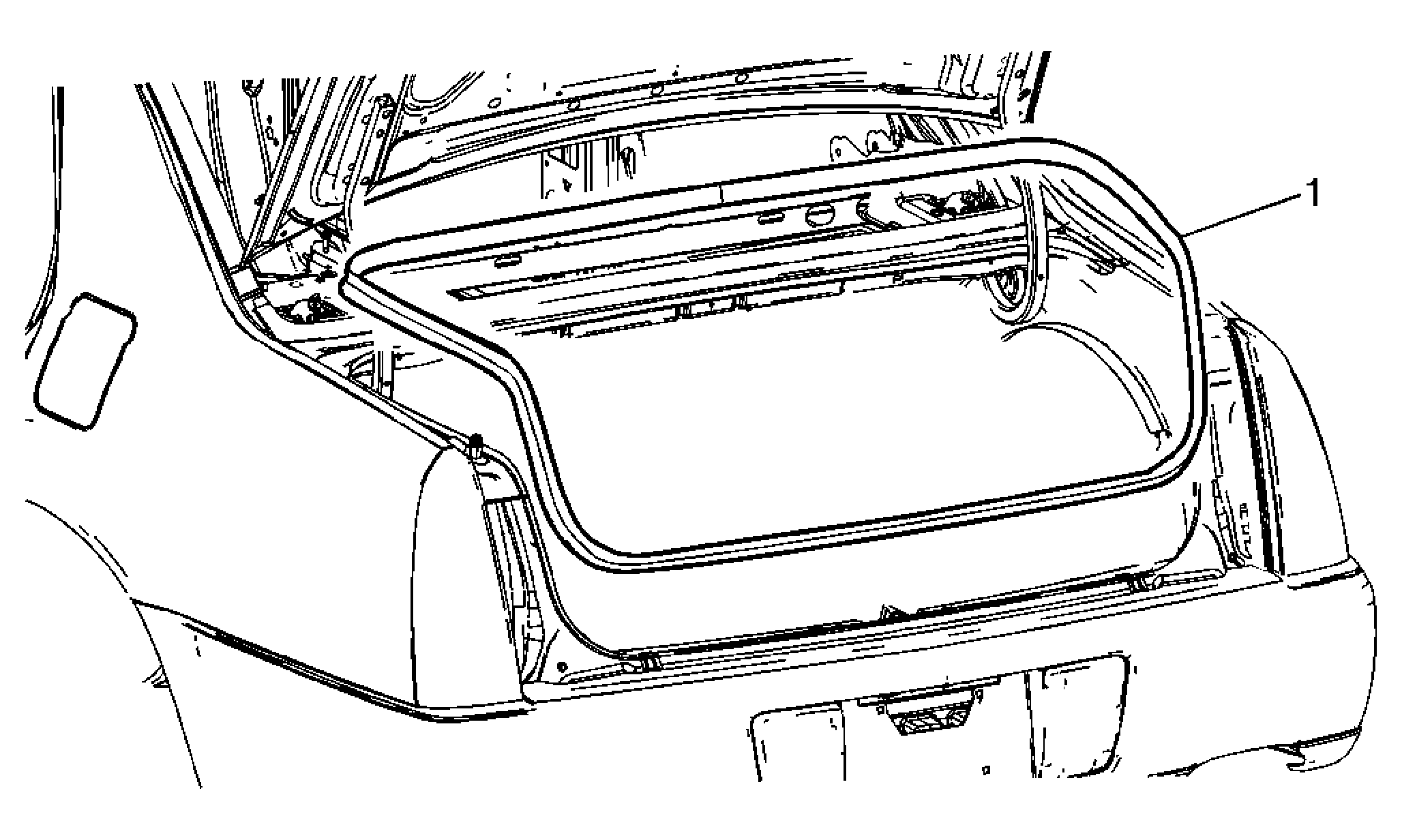

Fig 1: Weatherstrip Replacement - Rear Compartment Opening
GM1584107Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Compartment Lid Weatherstrip
