Front Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

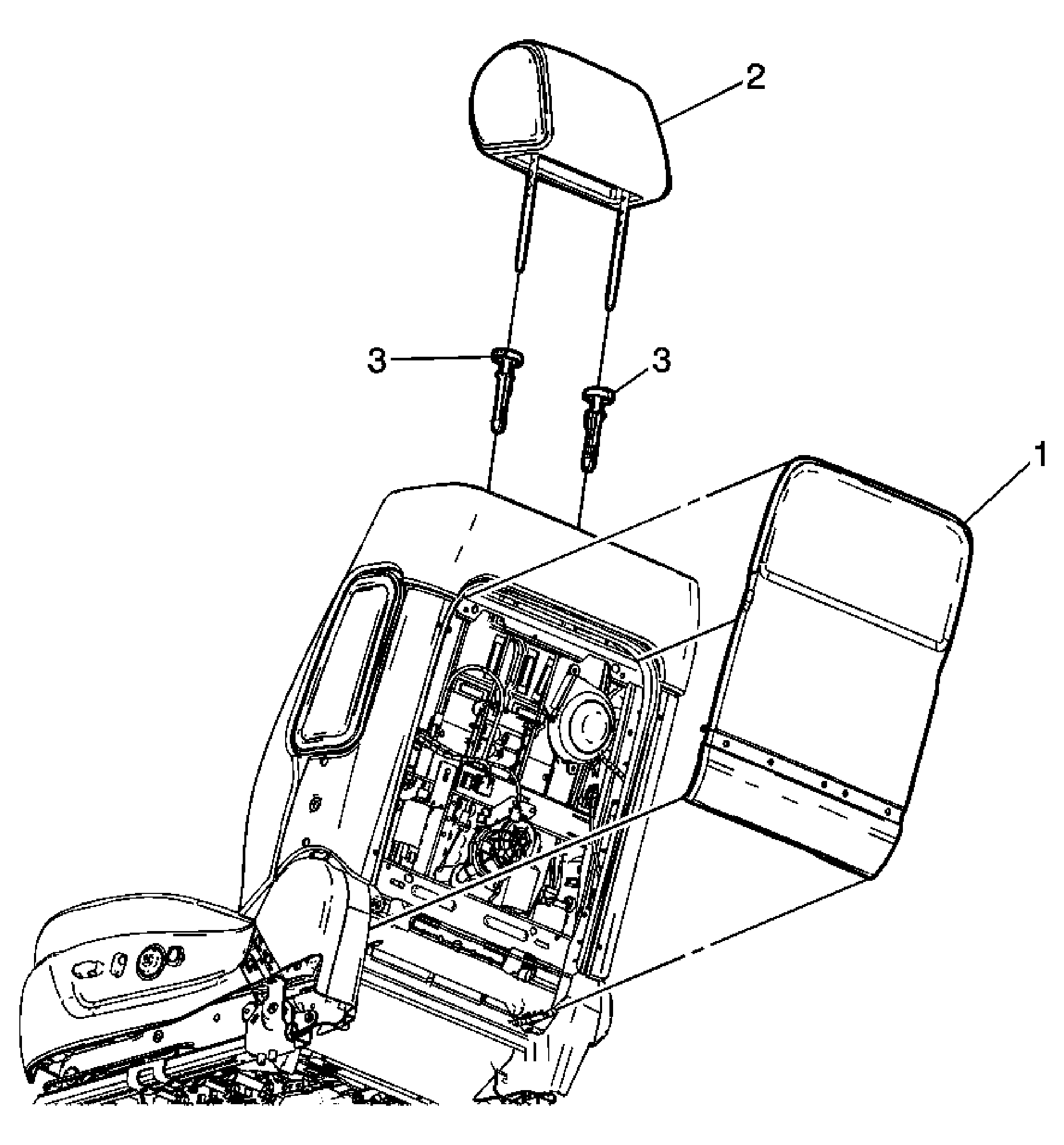

Fig 1: Front Seat Head Restraint Guide Replacement
GM1572284Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Panel, Seat Back Cushion Finish
Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement .
2 Restraint, Front Seat Head
Refer to Driver or Passenger Seat Head Restraint Replacement .
3 Guides, Front Seat Head Restraint
Tip:  Squeeze the bottom of the guides together and push upward to remove.
