Driver or Passenger Seat Head Restraint Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

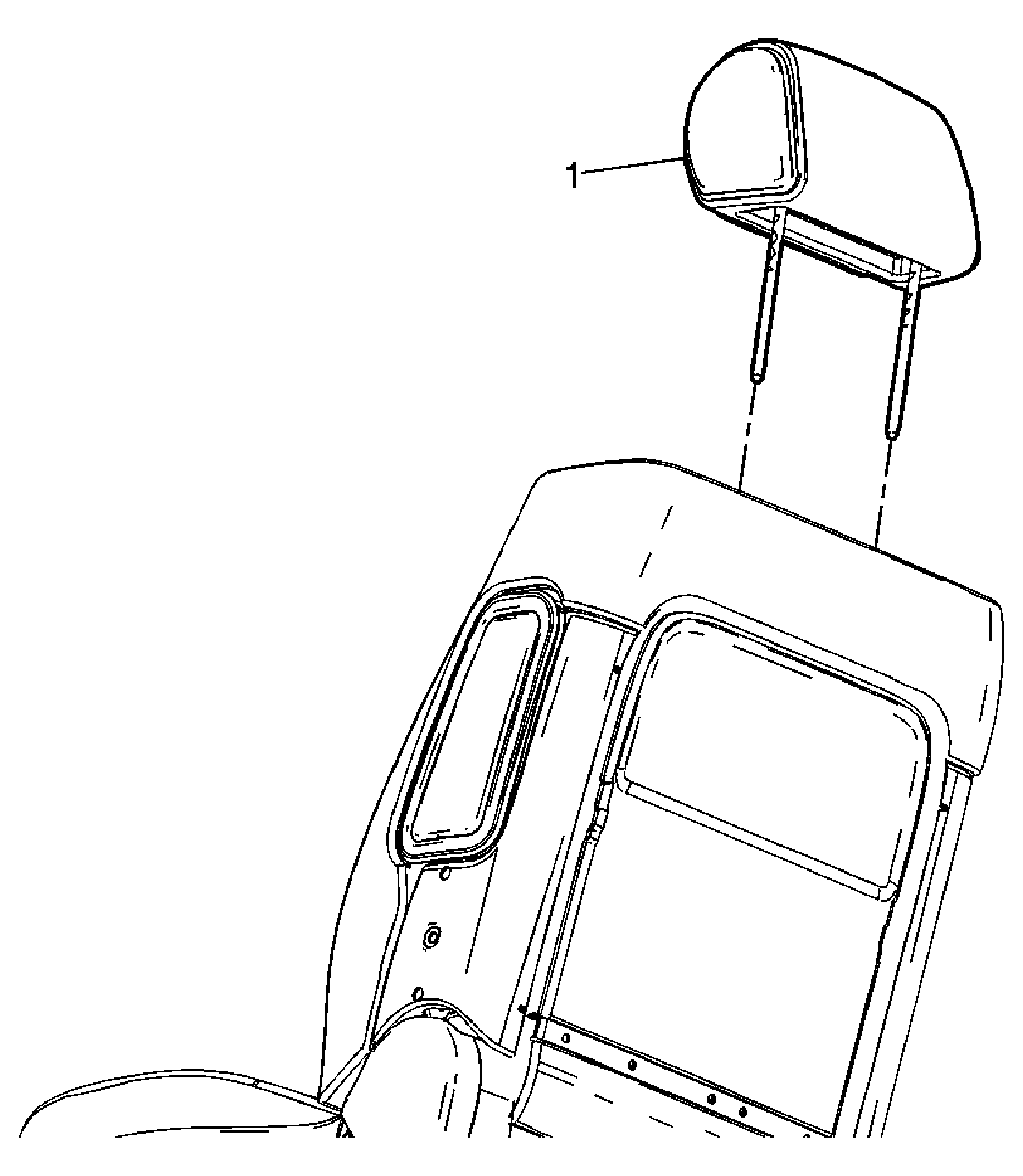

Fig 1: Front Seat Head Restraint Replacement
GM1572285Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Restraint, Front Seat Head
Tip:
  1. Depress the button on the inboard head restraint guide to raise the head restraint to the full up position.
  2. Use a J 42214  Headrest Removal Tool, or equivalent to aid in the removal of the head restraint.
