Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure





1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Rear Bumper Fascia Replacement).

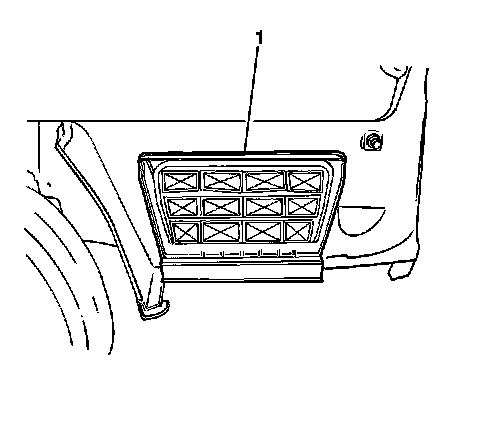

2. Remove the quarter outer panel pressure relief valve (1) from the vehicle by releasing the retaining tabs.



Installation Procedure





1. Install the quarter outer panel pressure relief valve (1). Ensure that the retaining tabs are fully engaged.
2. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Rear Bumper Fascia Replacement).
