Tools Required

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Bracket & Bolts
    GM696401Courtesy of GENERAL MOTORS CORP.
  1. Remove the 3 bolts from the bracket (1).
  2. Remove the bracket (1).
    3. Fig 2: View Of Drain Plug
    GM696404Courtesy of GENERAL MOTORS CORP.
  3. Remove the drain plug (1).

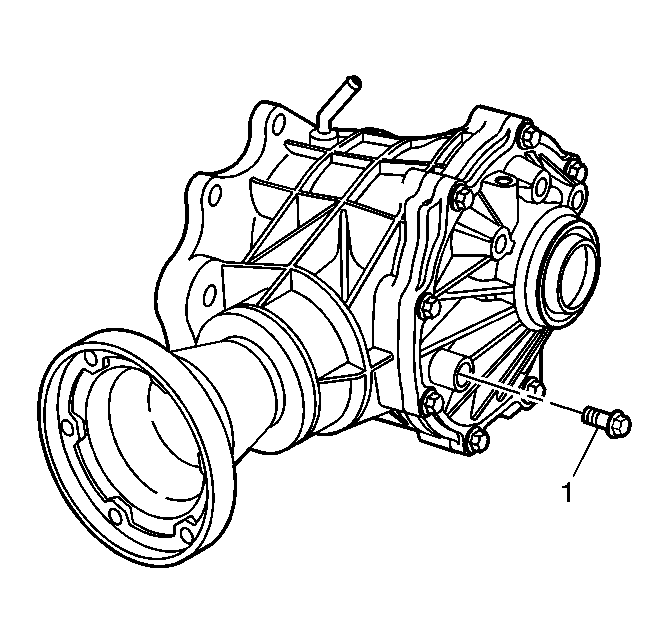

    4. Fig 3: View Of Fill Plug
    GM804370Courtesy of GENERAL MOTORS CORP.
  4. Remove the fill plug (1) and drain the fluid.
    5. Fig 4: View Of J-08614-A & J-44873-2 On Pinion Flange
    GM1400837Courtesy of GENERAL MOTORS CORP.
  5. Install J-08614-A  (2) and J-44873-2  (1) to the pinion flange. See Special Tools .

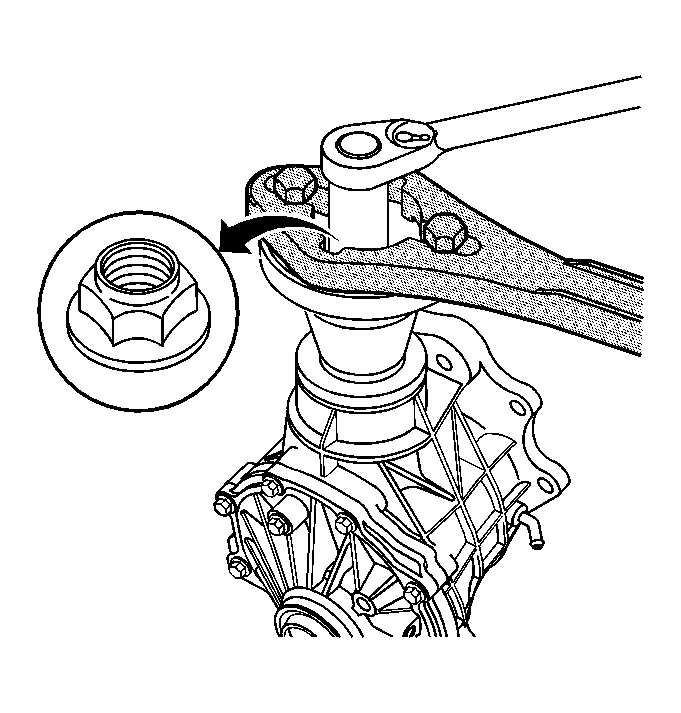

    6. Fig 5: View Of Pinion Nut
    GM1400841Courtesy of GENERAL MOTORS CORP.
  6. Using a ratchet with a 27 mm socket, remove the pinion nut.
    7. Fig 6: Inserting Forcing Screw Assembly Through Slots In J-08614-A
    GM1400842Courtesy of GENERAL MOTORS CORP.
  7. Insert the forcing screw assembly (1) through the slots in J-08614-A  (2).
  8. Turn the blue collar (1) until it locks into the grooves on the under side of the J-08614-A  (2).
    9. IMPORTANT: Use high pressure grease J 23444-A  on the screw threads.
  9. Tighten the forcing screw to remove the pinion flange.
    10. Fig 7: View Of J-08614-A, J-44873-2 & Forcing Screw Assembly At Pinion Flange
    GM1400843Courtesy of GENERAL MOTORS CORP.
  10. Remove the J-08614-A  (3), the J-44873-2  (2), and the forcing screw assembly (1) from the pinion flange. See Special Tools .

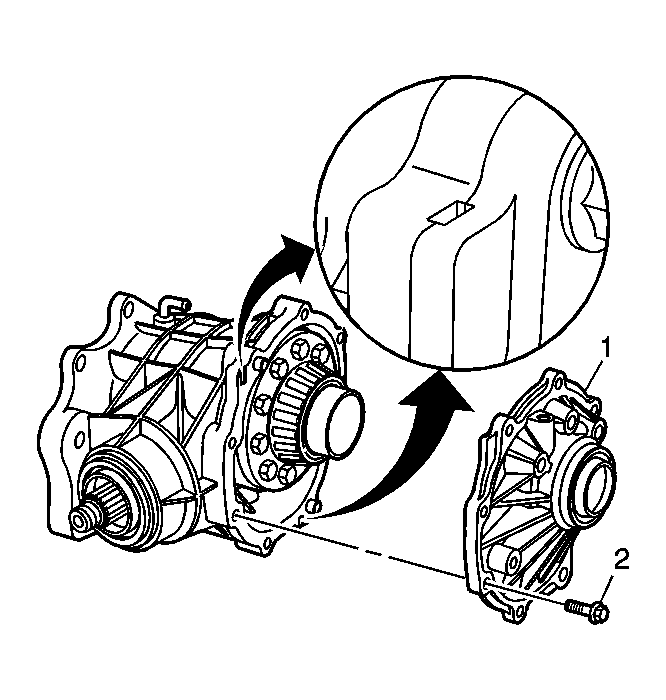

    11. Fig 8: View Of Side Cover & Bolts
    GM696418Courtesy of GENERAL MOTORS CORP.
  11. Remove all bolts (2) from the side cover (1).
  12. Use pry point relief slots to remove the cover.
    13. Fig 9: View Of Carrier Assembly
    GM696428Courtesy of GENERAL MOTORS CORP.
  13. Remove the carrier assembly (1) from the housing.
    14. Fig 10: Identifying Stub Shaft Inner Bearing
    GM1400845Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Perform this step ONLY if the bearing needs to be replaced. DO NOT use old bearing.
  14. Using the J 29369-2  and a slide hammer, remove the stub shaft inner bearing (2) from the carrier bore (1). See Special Tools .
    15. Fig 11: View Of Seal & Carrier Assembly
    GM696454Courtesy of GENERAL MOTORS CORP.
  15. Drive the seal (1) out from the inside of the carrier assembly housing.
    16. Fig 12: View Of Bearing Cup, Shims, Seal & Side Cover
    GM696421Courtesy of GENERAL MOTORS CORP.
    NOTE: The bearing cup shims must be removed before the seal can be removed. Installing the seal through the bearing cup will damage the new seal. It may be necessary to heat the housing in order to remove the cup.
  16. Remove the bearing cup (1), shims (2) and seal (3) from the side cover (4).

    Mark or tag the bearing cup (1) and shims (2) for proper assembly.

    17. Fig 13: View Of Axle Seal & Side Cover
    GM696425Courtesy of GENERAL MOTORS CORP.
  17. Remove the axle seal (2) from the side cover (1).
    18. Fig 14: View Of Pinion Oil Seal & Slinger Washer
    GM696458Courtesy of GENERAL MOTORS CORP.
  18. Remove the pinion oil seal (1) and slinger washer (2) from the housing.

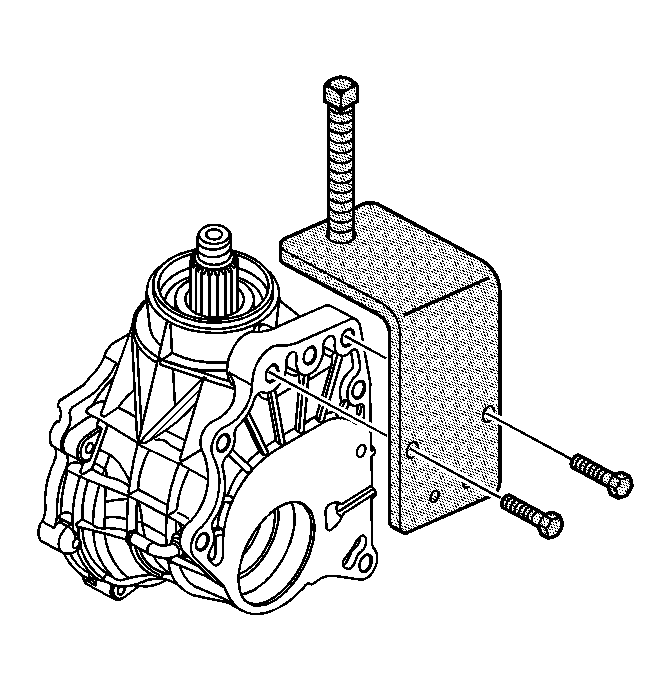

    19. Fig 15: Attaching J 44882 To Carrier Housing
    GM750951Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not use air tools. The use of air tools will damage the J 44882.
    IMPORTANT: Use high pressure grease J 23444-A  on the threads of the forcing screw.
  19. Using the bolts supplied, attach J 44882  to the carrier housing. See Special Tools .

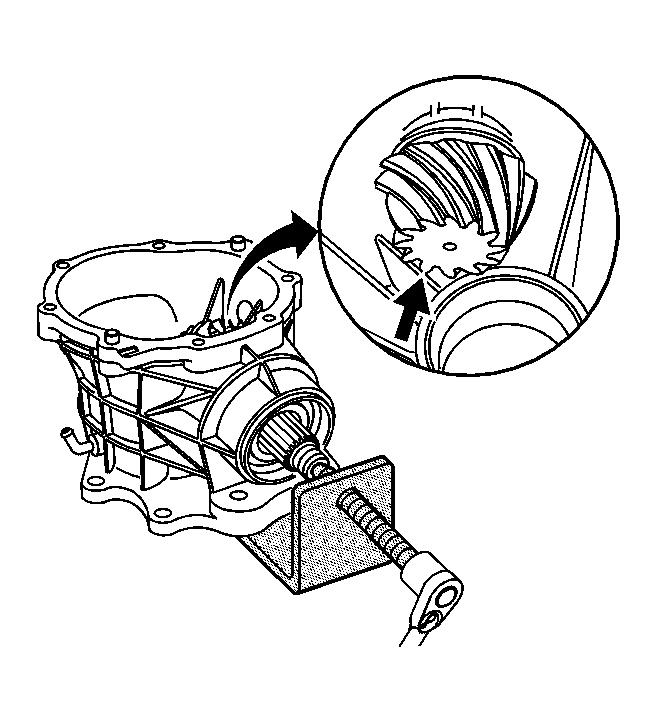

    20. Fig 16: Tightening Forcing Screw To Push Out Pinion Gear
    GM804373Courtesy of GENERAL MOTORS CORP.
  20. Tighten the forcing screw in order to push out the pinion gear. The gear will spin when it is being pushed out. When the gear stops spinning, stop pushing. The gear teeth will contact the housing.
  21. Remove the J 44882  . See Special Tools .
    22. Fig 17: Identifying Pinion Nut & Threads Of Pinion Shaft
    GM804374Courtesy of GENERAL MOTORS CORP.
  22. Install the old pinion nut on the threads of the pinion shaft. Hold the shaft so the gear head faces up, and drive out the pinion shaft, so that it does not contact the housing.
    23. Fig 18: View Of Bearing, Collapsible Spacer & Pinion Shaft
    GM696464Courtesy of GENERAL MOTORS CORP.
  23. Remove the bearing (1), collapsible spacer (2), and pinion shaft (3) from the housing.
