Installation Procedure

WARNING: This page is about a different variant/trim than selected.

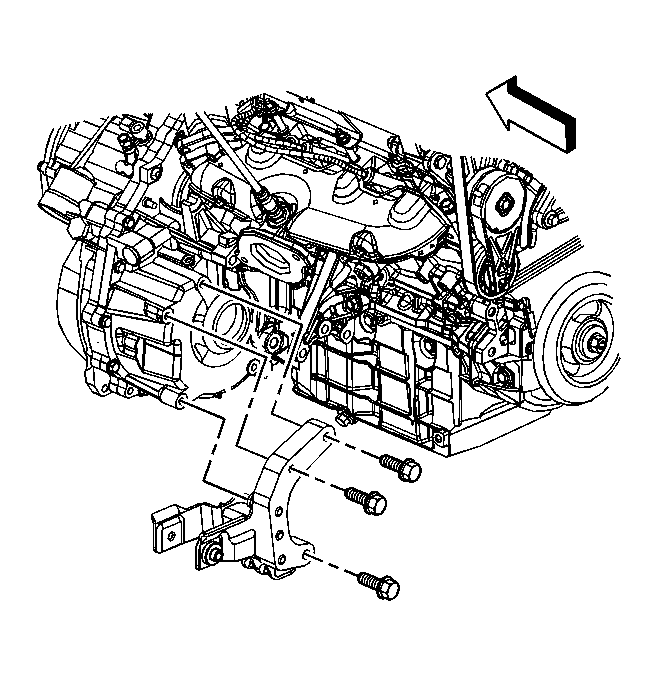

Fig 1: View Of Rear Transmission Mount Bracket

Courtesy of GENERAL MOTORS CORP.

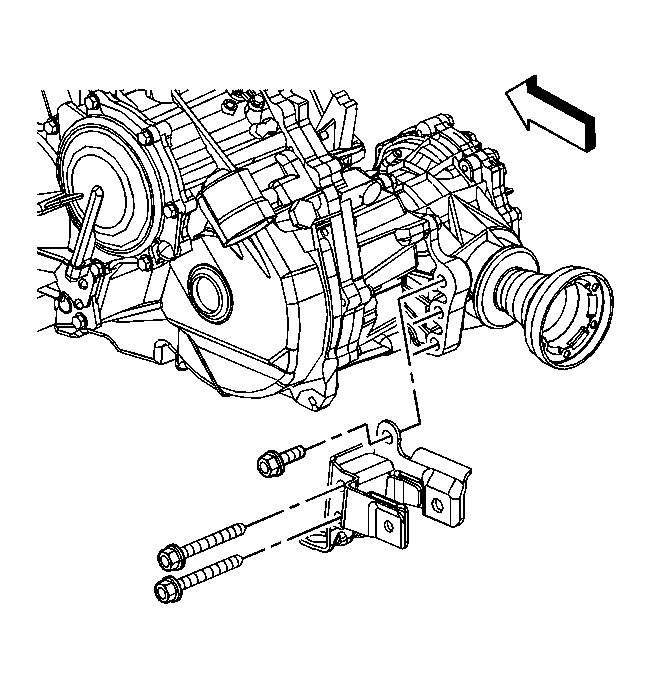

Fig 2: View Of Transmission Mount Bracket To Transmission Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the transmission mount bracket to transmission bolts.
Tighten: Tighten the bolts to 110 N.m (81 lb ft).

Fig 3: View Of Steering Gear & Steering Gear-To-Frame Bolts

Courtesy of GENERAL MOTORS CORP.

Lower the steering gear to the frame.
Install the steering gear to frame bolts.
Tighten: Tighten the bolts to 110 N.m (81 lb ft).

Fig 4: View Of Steering Shaft To Intermediate Shaft

Courtesy of GENERAL MOTORS CORP.

Install the intermediate steering shaft to the steering gear.
Install the intermediate steering shaft to gear pinch bolt.
Tighten: Tighten the bolts to 34 N.m (25 lb ft).

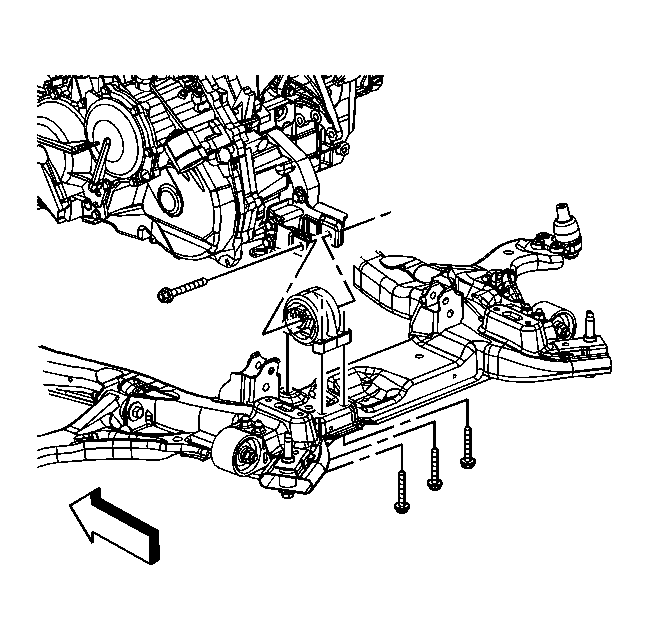

Fig 5: View Of Rear Transmission Mount & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear transmission mount. Refer to Transmission Rear Mount Replacement .
