Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Support the engine. Refer to Engine Support Fixture .
  2. Remove the battery tray. Refer to Battery Tray Replacement .

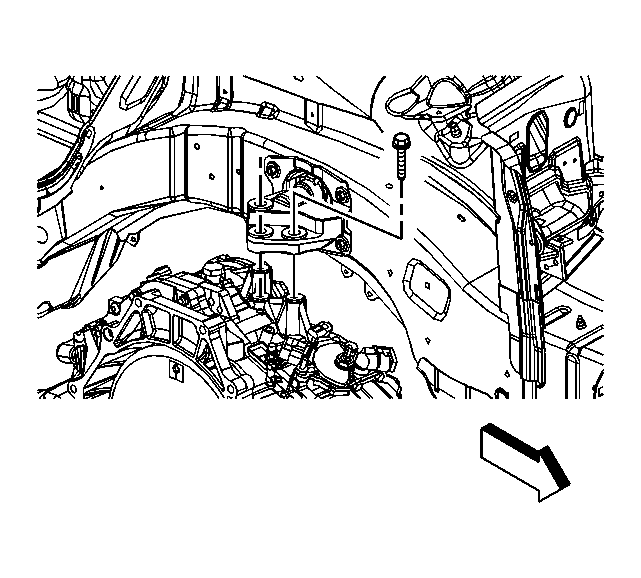

    3. Fig 1: View Of Left Transmission Mount To Transmission Bolts
    GM1398179Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount to transmission bolts.

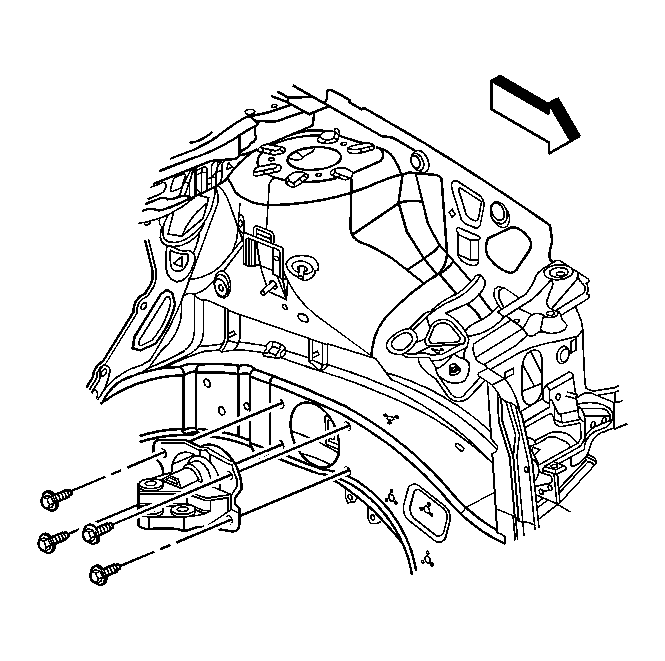

    4. Fig 2: View Of Left Transmission Mount & Frame Rail Bolts
    GM1398178Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission mount to frame rail bolts.
  5. Remove the mount from the engine.
